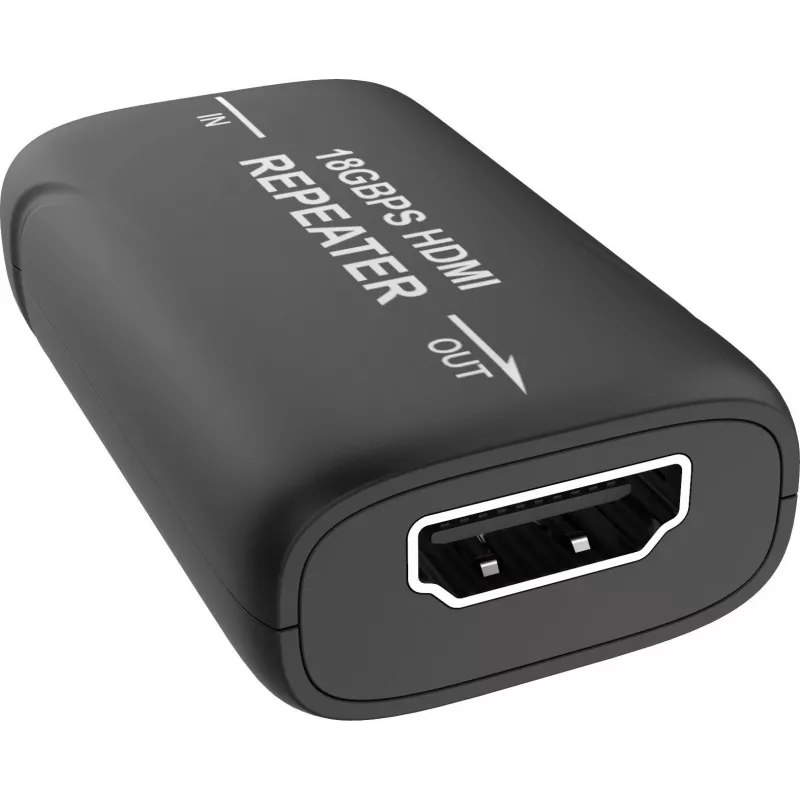

InLine® video-repeater, HDMI 4K/60Hz

HDMI 2.0b repeater that extends 4K UHD signals up to 30 meters total, supporting HDR10, HDCP 2.2, and 18 Gbps bandwidth for flawless video and audio.

Advantages

Regenerates and equalizes HDMI signals to overcome cable length limitations without signal degradation. Supports 4K@60Hz with 4:4:4 chroma for crisp, vibrant images. USB-powered for flexible installation; no external power brick needed.

Suitable for

• Home theater setups requiring long cable runs between source and display
• Conference rooms and digital signage with 4K projectors or displays
• Connecting devices like Blu-ray players, media streamers, or gaming consoles to remote TVs

Key specifications

• HDMI 2.0b, HDCP 2.2, HDR10, 18 Gbps
• 1x HDMI input, 1x HDMI output (Type A female)
• Max total cable length: 30m (4K@60Hz, AWG24), 40m (1080p)
• USB powered (5V DC via Micro-USB)
• Metal housing, black

Recommendations

Use high-quality HDMI cables (AWG24 or lower gauge) to achieve maximum distances. Place the repeater near the middle of the cable run for optimal performance.
