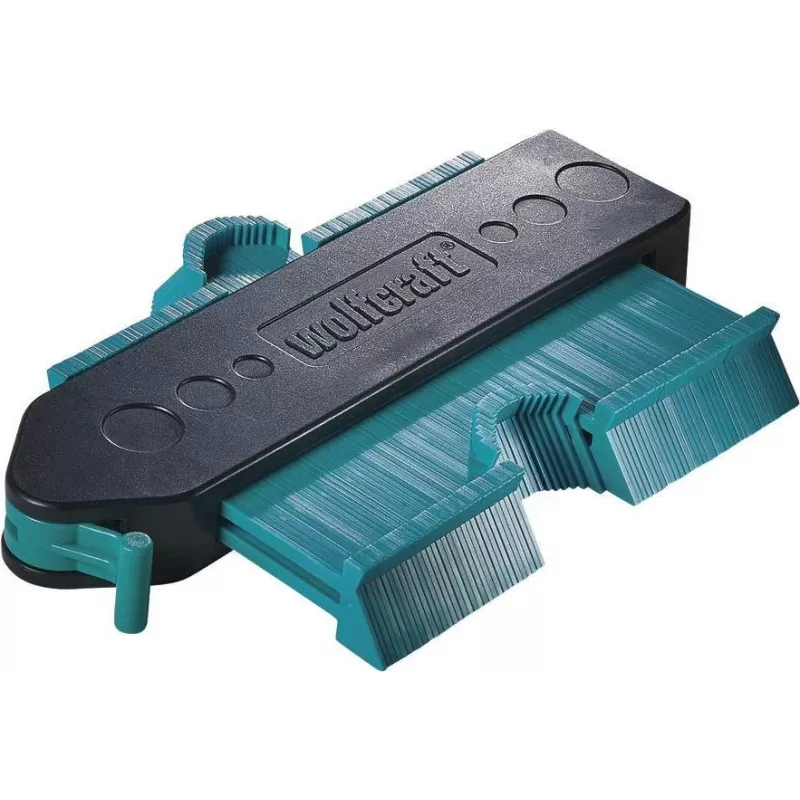

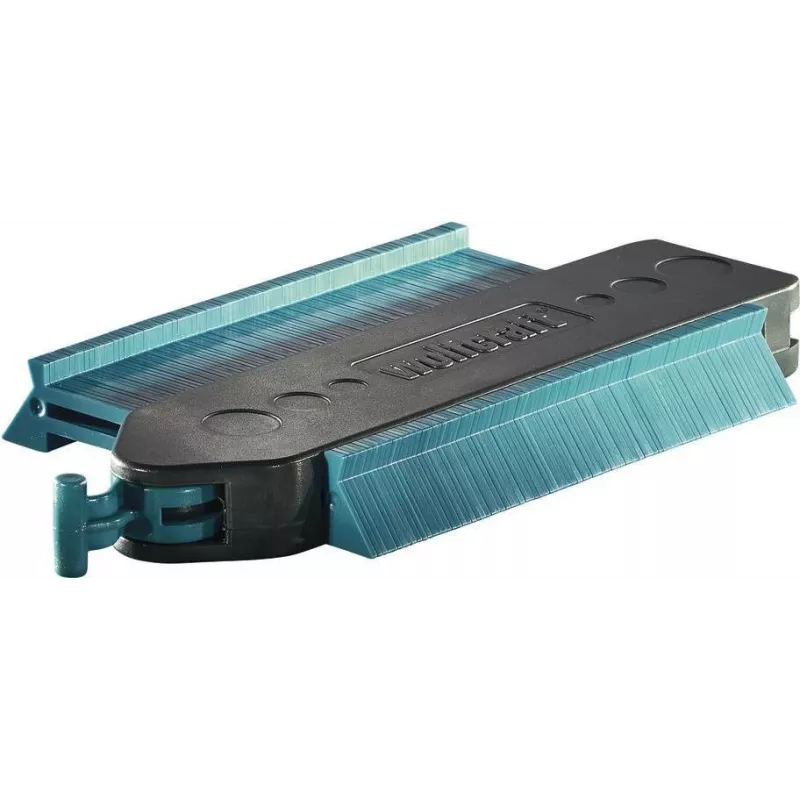

Wolfcraft contourmal 130 mm 6949000

Profile gauge for precise transfer of irregular contours in flooring, tiling, carpentry, and pipe fitting. The 130 mm measuring width and 30 mm depth allow accurate duplication of complex shapes with friction-held ABS plastic pins that stay in place once pressed against a surface.

Advantages

High-impact resistant plastic body and pins ensure durability on the job site. The simple push-to-shape mechanism requires no locking or adjustment, making it fast to use. Metric scale markings on the body aid in measuring transferred profiles.

Suitable for

• Copying profiles for laminate and vinyl flooring cuts
• Transferring tile shapes around door frames and pipes
• Duplicating moulding contours in carpentry
• Fitting pipes and irregular objects

Key specifications

• Measuring width: 130 mm
• Measuring depth: 30 mm
• Pin material: ABS plastic
• Body material: ABS plastic
• Pin thickness: approx. 1 mm
• Scale type: metric (mm)
• Colour: grey / black

Recommendations

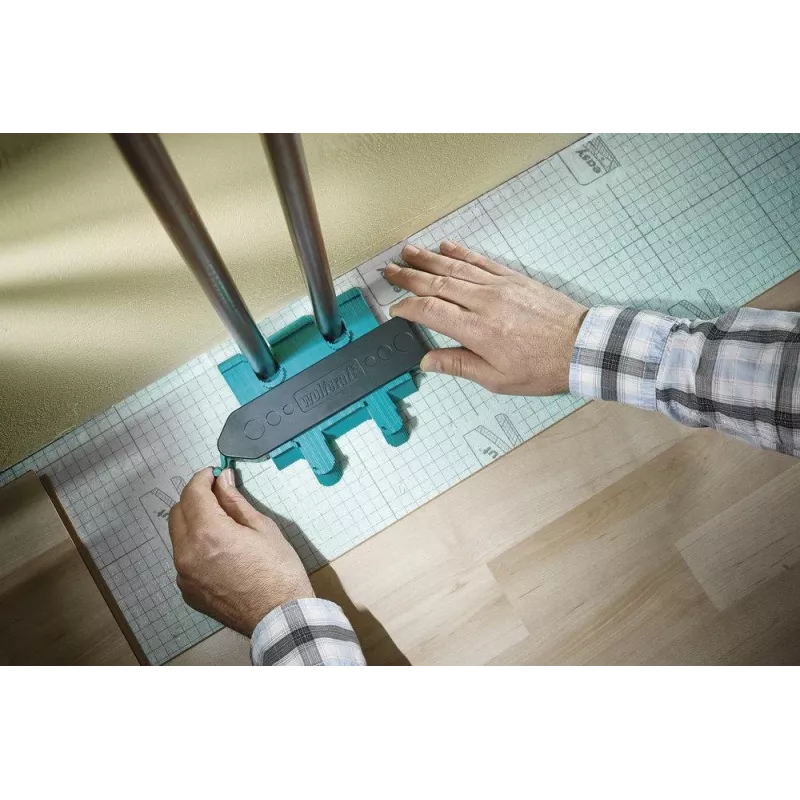

For best results, press the gauge firmly against the contour and then trace the profile onto the workpiece. The pins hold their position until reset by pressing against a flat surface.
