Weidmüller eindhouder EW 15 beige 0382860000

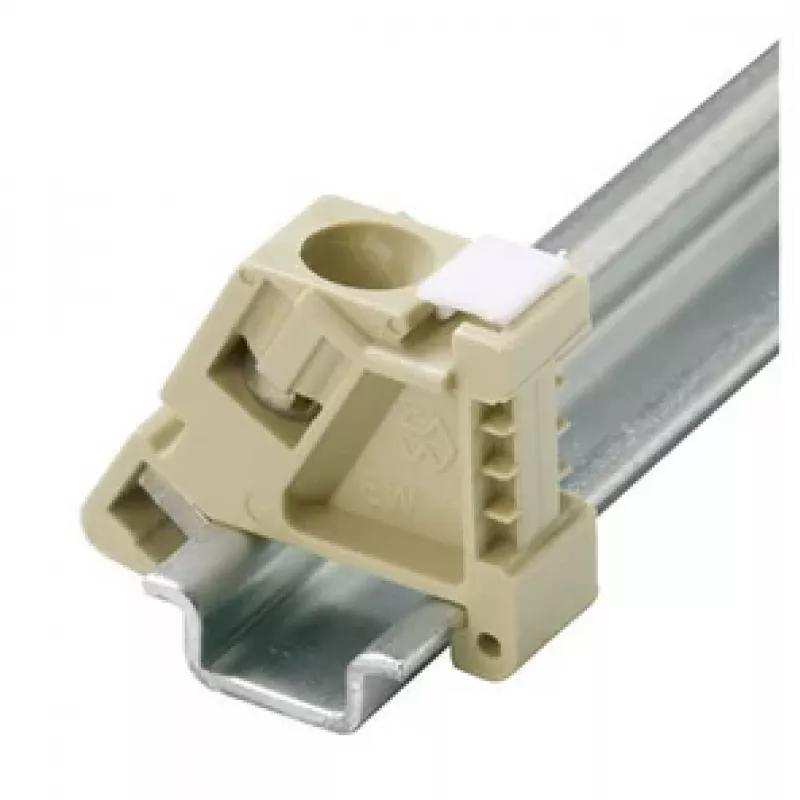

The Weidmüller End Bracket EW 15 is a high-quality accessory designed to secure terminal blocks and other components on DIN rails. Made from durable WEMID (Polyamide) material, this beige end bracket ensures reliable fixation and easy snap-on mounting. It is compatible with TS 15, TS 32, and TS 35 DIN rails, making it versatile for various industrial applications.

Advantages

Provides secure locking of terminal blocks on DIN rails, preventing unwanted movement. The snap-on design allows for quick and tool-free installation. With a wide operating temperature range of -50 to 100 °C, it is suitable for demanding environments. The UL94 V-2 flammability rating ensures safety in case of fire.

Suitable for

• Securing terminal blocks on DIN rails in control cabinets
• Industrial automation and electrical distribution systems
• Applications requiring reliable component fixation

Key specifications

• Product Type: End Bracket
• Series: EW
• Color: Beige
• Material: WEMID (Polyamide)
• Mounting Method: Snap-on
• Compatible DIN Rail Standards: TS 15, TS 32, TS 35
• Width (Thickness): 5 mm
• Height: 30 mm
• Depth: 30 mm
• Weight per Piece: 2.2 g
• Operating Temperature Range: -50 to 100 °C
• Storage Temperature Range: -50 to 100 °C
• Flammability Rating: UL94 V-2
• Environmental Compliance: RoHS, REACH

Recommendations

For optimal performance, use this end bracket with Weidmüller terminal blocks and DIN rails. Ensure the rail is clean and properly aligned before snap-on installation.
