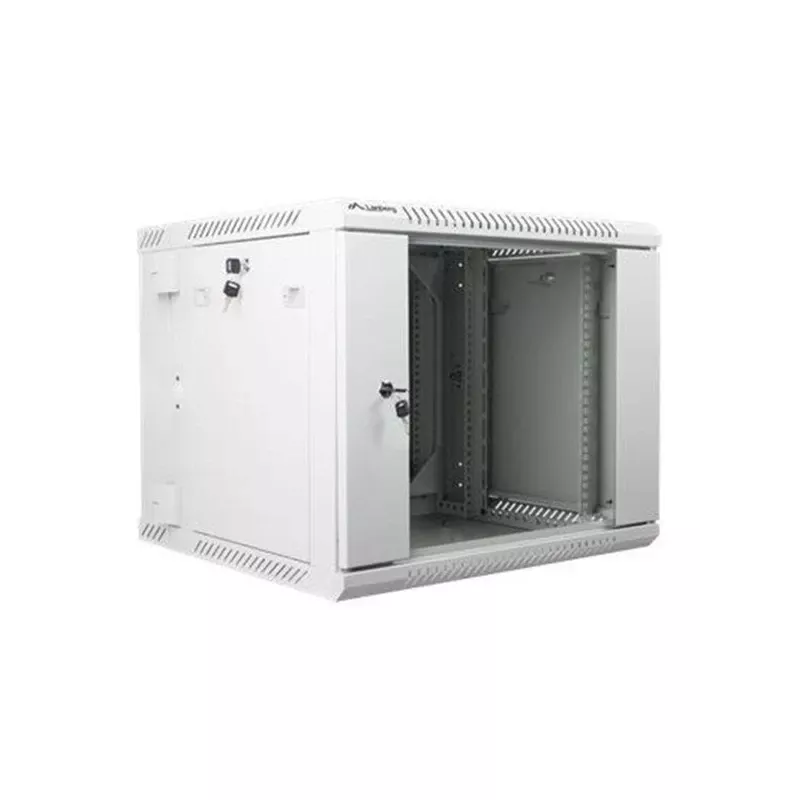

Wandkast Lanberg WF02-6609-10S

Network administrators and installers looking to tidy up a crowded comms room or secure CCTV equipment will find the Lanberg WF02-6609-10S a practical choice. This 19-inch wall-mounted rack cabinet offers 9U of usable space in a double-section design, with a separate rear compartment for cable routing and maintenance. Built from cold-rolled steel and finished in grey, it supports up to 60 kg of equipment and comes flat-packed for straightforward self-assembly. The front door is made of tempered glass and includes a lock, while the reversible rear section and removable, lockable side panels make access and orientation flexible.

Key specifications

• Rack type: Wall-mounted, double-section cabinet
• Rack capacity: 9U
• Standard width: 19 inch
• External dimensions (W x D x H): 600 x 600 x 507.3 mm
• Maximum load capacity: 60 kg
• Material: Cold-rolled steel, grey finish
• Front door: Tempered glass with lock
• Side panels: Removable with locks
• Cable entry: Top and bottom panels
• Protection rating: IP20
• Assembly: Flat-pack, self-assembly required
• Mounting rails: Adjustable 19" rails included
• Fan support: Yes (2x 120 mm fans, not included)
• Compliance: RoHS

Why choose it

The double-section layout keeps power and data cables separate from active equipment, reducing clutter and improving airflow. Reversible doors and a reversible rear section allow left- or right-hand mounting to suit your space. The tempered glass front door provides a clear view of indicator lights while keeping equipment secure. Removable side panels with locks simplify maintenance, and the included M6 cage nuts and blank entry panels help you get started quickly.

Ideal use cases

• Small and medium business network racks
• Server rooms and network closets
• CCTV and IP surveillance equipment
• Low-voltage systems: cable TV, alarm, fire protection, access control

Good to know

The cabinet is delivered flat-packed with mounting rails, M6 cage nuts, and blank entry panels. It weighs 24 kg and should be mounted on a suitable wall structure. The IP20 rating means it is intended for indoor use in dry environments. Two 120 mm fans can be added if active cooling is needed, but they are not included.
