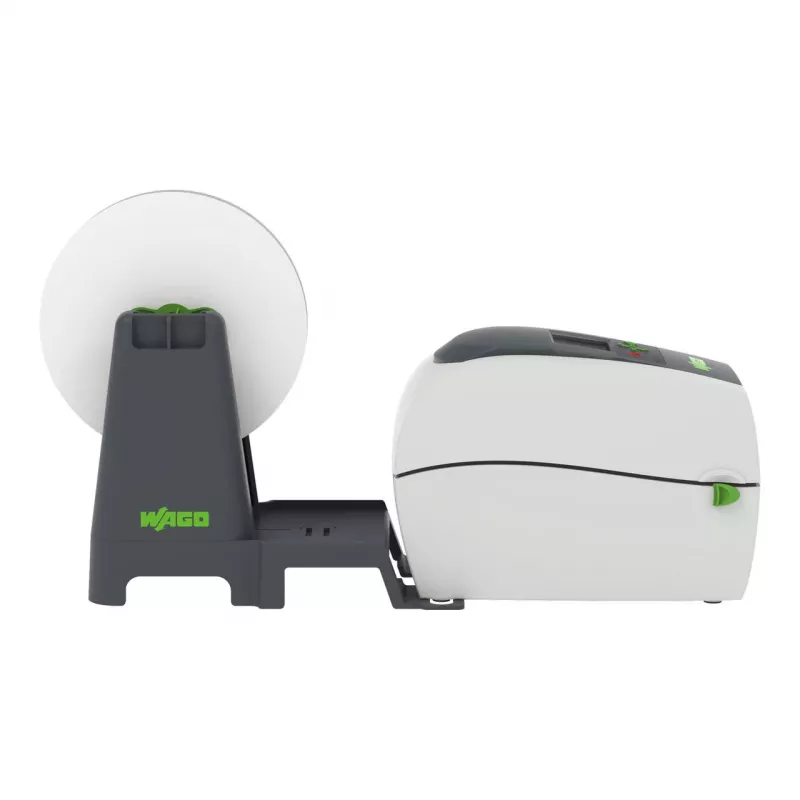

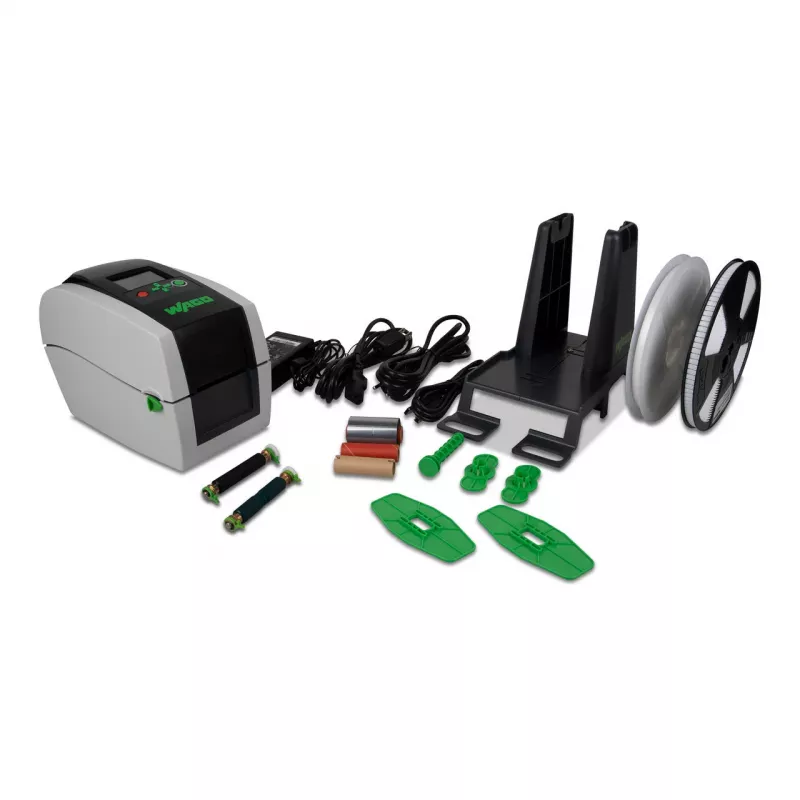

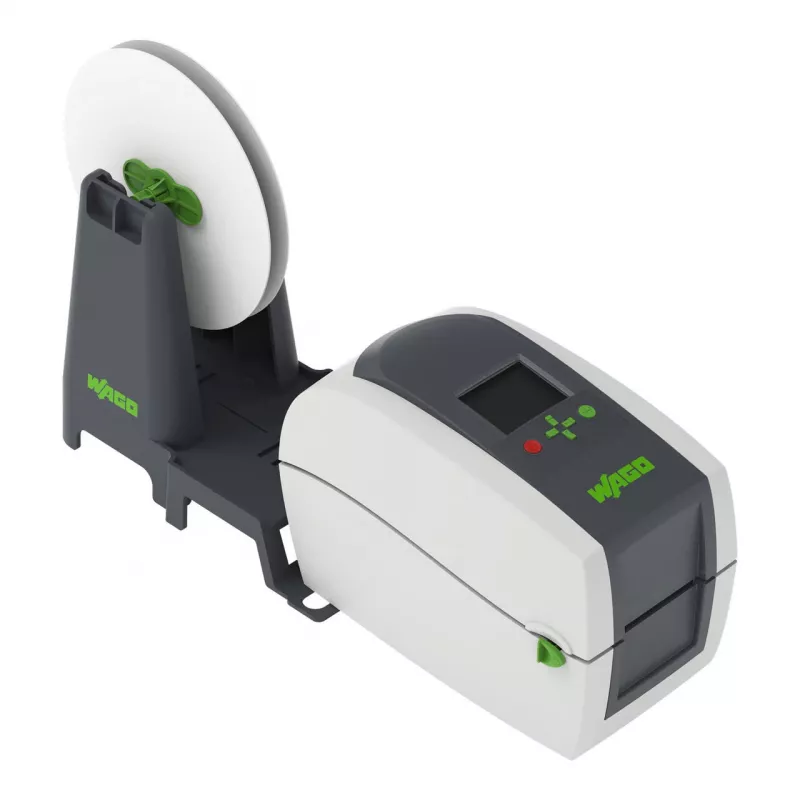

WAGO 258-5107 thermotransferprinter Smart Printer

The WAGO 258-5107 Smart Printer is a high-performance thermal transfer printer designed for professional marking and labeling of wires, cables, and components. With a resolution of 300 dpi and a print speed of up to 125 mm/s, it delivers crisp, durable prints on a variety of WAGO marking materials. The color touchscreen and intuitive software make setup and operation simple, while USB and Ethernet connectivity ensure seamless integration into your workflow.

Advantages

This printer offers exceptional print quality and reliability for industrial environments. Its compact design saves space, and the real-time clock enables time-stamped prints. The 32-bit RISC processor ensures fast processing, and the 128 MB RAM and Flash memory allow for efficient handling of complex print jobs.

Suitable for

• Marking wires and cables in control cabinets
• Labeling terminal blocks and components
• Creating custom labels for identification and traceability
• Printing on WAGO marking materials such as WMB, WSB, group marker carriers, and shrink sleeves

Key specifications

• Print Technology: Thermal Transfer
• Print Resolution: 300 dpi
• Max Print Speed: 125 mm/s (5 ips)
• Max Print Width: 105.7 mm (4.16 inches)
• Connectivity: USB 2.0, Ethernet (RJ45)
• Display: Color Touchscreen
• Internal Memory: 128 MB RAM, 128 MB Flash
• Input Voltage: 100-240 VAC, 50/60 Hz
• Operating Temperature: 5°C to 40°C
• Ribbon Compatibility: Wax, Wax/Resin, Resin
• Max Ribbon Length: 300 m
• Protection Class: IP20
• Housing Material: Plastic

Recommendations

For optimal results, use genuine WAGO marking materials and ribbons. The printer is compatible with WAGO Smart Script and Smart Designer software for easy label creation. Ensure proper ventilation and avoid exposure to extreme temperatures.
