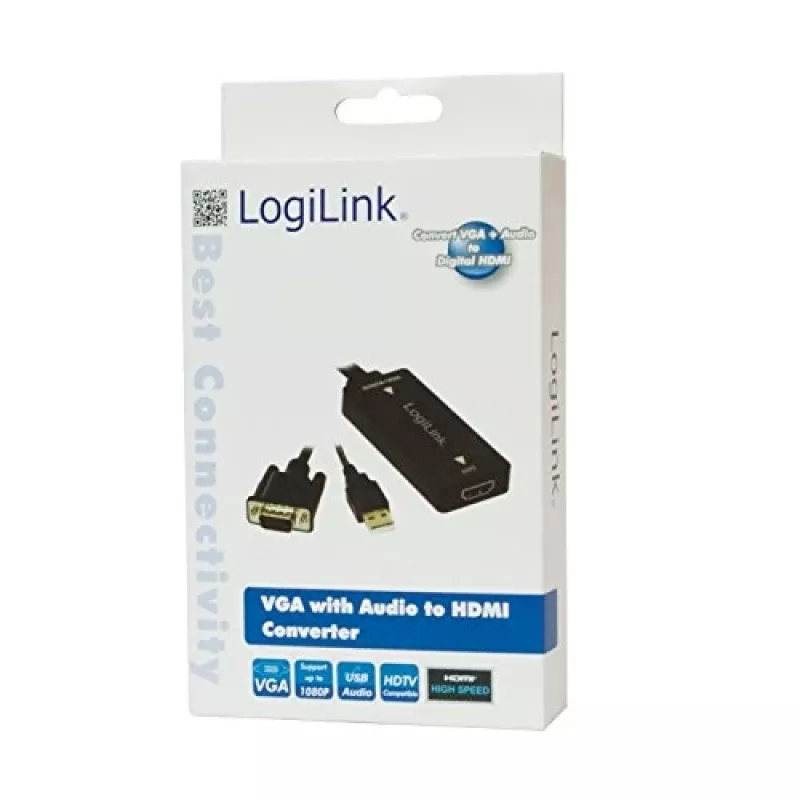

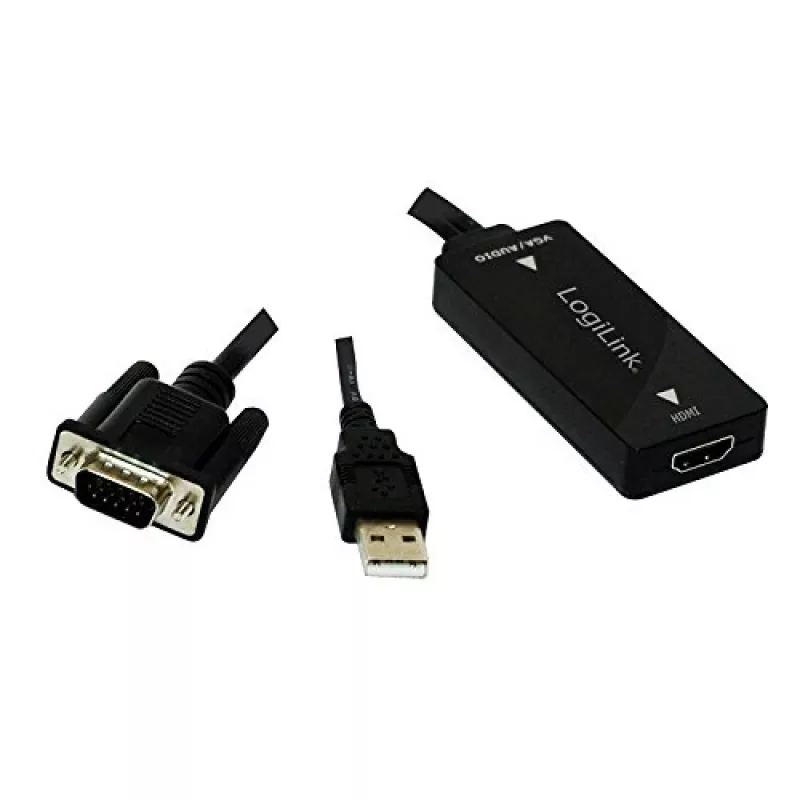

Videokabel-adapter LogiLink CV0060 zwart

The LogiLink CV0060 Black video cable adapter supports computer and HDMI video modes up to 1080p, providing a compact and reliable connection solution. Designed for compatibility with a wide range of VGA and HDMI resolutions, it is suitable for connecting devices with differing video outputs while maintaining digital audio passthrough and energy-saving operation.

Advantages

The adapter is compliant with High Speed HDMI standards and supports pixel rates above 165 Mpix/s for stable image transmission. It offers a High-End digital audio interface with support for 2-channel and virtual 5.1 audio formats and sample rates up to 192 kHz. Its compact black enclosure and low power consumption make it convenient for portable setups and installations with limited space.

Suitable for

• Connecting a PC VGA output to an HDMI display (up to 1080p)
• Converting older monitor signals to modern HDMI displays
• Portable or small workspace AV setups

Key specifications

• Compatible PC VGA resolutions: VGA 640 x 480 @ 60 Hz; SVGA 800 x 600 @ 60 Hz; 1152 x 864 @ 60 Hz; 1280 x 960 @ 60 Hz
• Supported progressive modes: 720p (1280 x 720 @ 60 Hz), WXGA (1280 x 768 @ 60 Hz), SXGA (1280 x 1024 @ 60 Hz), 1080p (1920 x 1080 @ 60 Hz)
• Compliant with High Speed HDMI
• Supports pixel rates above 165 Mpix/s
• Digital audio: 2-channel and virtual 5.1, up to 192 kHz sample rate
• Product colour: Black
• Manufacturer model: LogiLink CV0060
• Package size (W×D×H): 105 × 31 × 186 mm

How to use

Connect the VGA source to the adapter’s VGA input and attach the HDMI cable from the adapter to the display. Power the adapter if an external power supply is required by your specific configuration. Select the appropriate resolution on the source device (up to 1080p) to match the display. Allow a few seconds for the devices to negotiate supported resolutions and audio formats.

Recommendations

For best results, use high-quality VGA and HDMI cables, set the source resolution to one of the supported modes listed, and ensure the display is set to accept HDMI input. If audio is not detected, verify audio settings on the source device and try a different HDMI cable.
