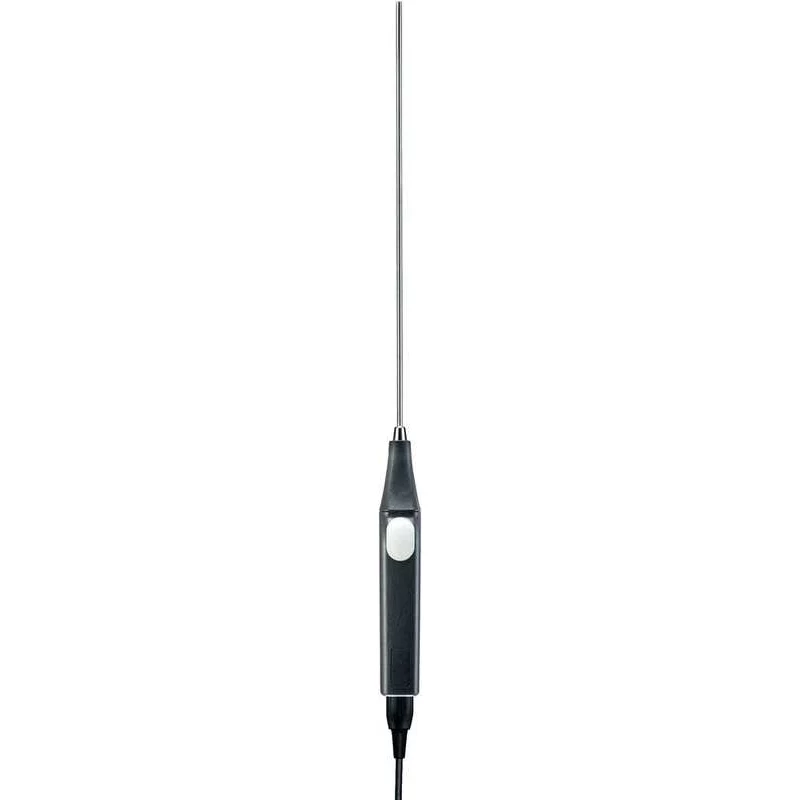

testo dompel-/steekvoeler (0614 0235)

Temperature probe for immersion and penetration measurements with NTC sensor, covering -50 to +150 °C. The probe shaft is 125 mm long and 5 mm in diameter, with a 1.2 m fixed cable for connection to compatible Testo measuring instruments.

Advantages

Fast response time of 10 seconds in water and high accuracy of ±0.2 °C between -25 and +80 °C.

Suitable for

• Temperature measurement in liquids and semi-solid media
• Applications requiring a robust, waterproof probe (IP67)

Key specifications

• Sensor type: NTC
• Measuring range: -50 to +150 °C
• Accuracy: ±0.2 °C (-25 to +80 °C), ±0.4 °C (remaining range)
• Resolution: 0.1 °C
• Response time t99 in water: 10 s
• Probe shaft length: 125 mm
• Probe shaft diameter: 5 mm
• Cable length: 1.2 m
• Protection class: IP67 (probe shaft and cable)
• Handle material: TPE
• Operating temperature (handle): -20 to +70 °C

Recommendations

For use with compatible Testo measuring instruments. Ideal for food, laboratory, and HVAC applications.
