SYNERGY21 glasvezel-patchkabel 20m SC/APC naar SC/APC OS2 G.657.A2 9/125µm simplex 2mm geel

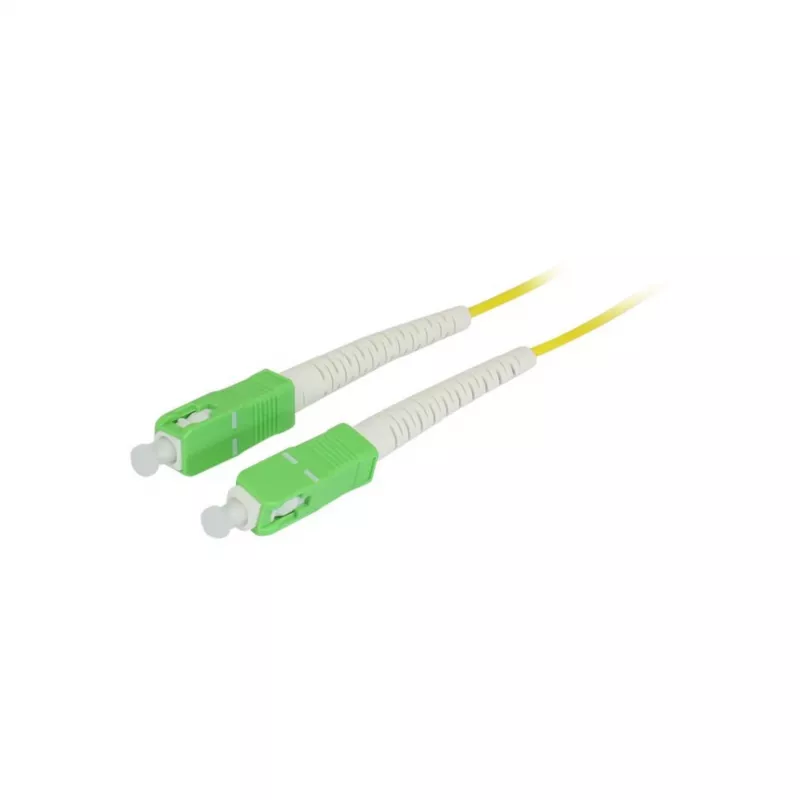

The SYNERGY21 Fiber Optic Patch Cable is a high-quality single-mode simplex patch cord designed for reliable data transmission in fiber optic networks. With a length of 20 meters and SC/APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and telecommunication applications. The cable features a 9/125 µm core/cladding diameter, OS2 fiber class, and ITU-T G.657.A2 standard, providing excellent bending performance and durability. Its 2 mm outer diameter and flexible jacket allow for easy installation in tight spaces. The yellow color indicates single-mode fiber, ensuring quick identification.

Advantages

This patch cable offers superior signal integrity with insertion loss <0.3 dB and return loss >60 dB (APC). The G.657.A2 fiber is bend-insensitive, reducing signal loss in tight bends. The SC/APC connectors minimize back reflection, crucial for high-speed data and video transmission. The 2 mm diameter and flexible design make it easy to route in patch panels and equipment racks.

Suitable for

• Fiber optic network installations (FTTH, FTTB)
• Data centers and server rooms
• Telecommunication and CATV systems
• Test and measurement equipment
• Indoor fiber optic cabling

Key specifications

• Connector Type: SC/APC to SC/APC
• Fiber Type: Single-Mode (OS2)
• Core/Cladding: 9/125 µm
• Fiber Standard: ITU-T G.657.A2
• Number of Fibers: 1 (Simplex)
• Cable Length: 20 m
• Cable Outer Diameter: 2 mm
• Jacket Color: Yellow
• Insertion Loss: ≤0.3 dB
• Return Loss (APC): ≥60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid sharp bends. This cable is compatible with standard SC/APC ports.
