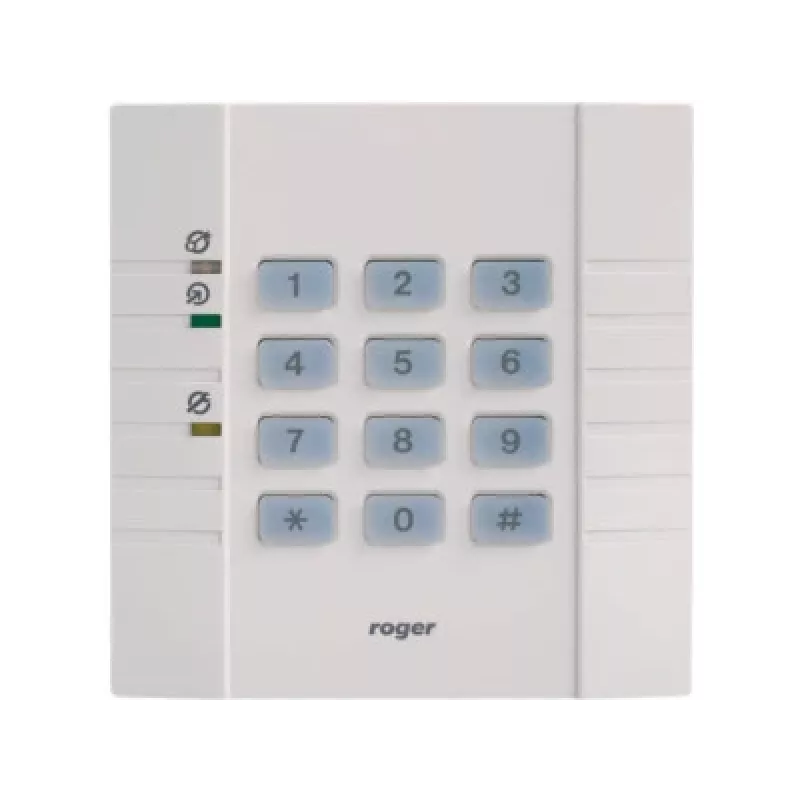

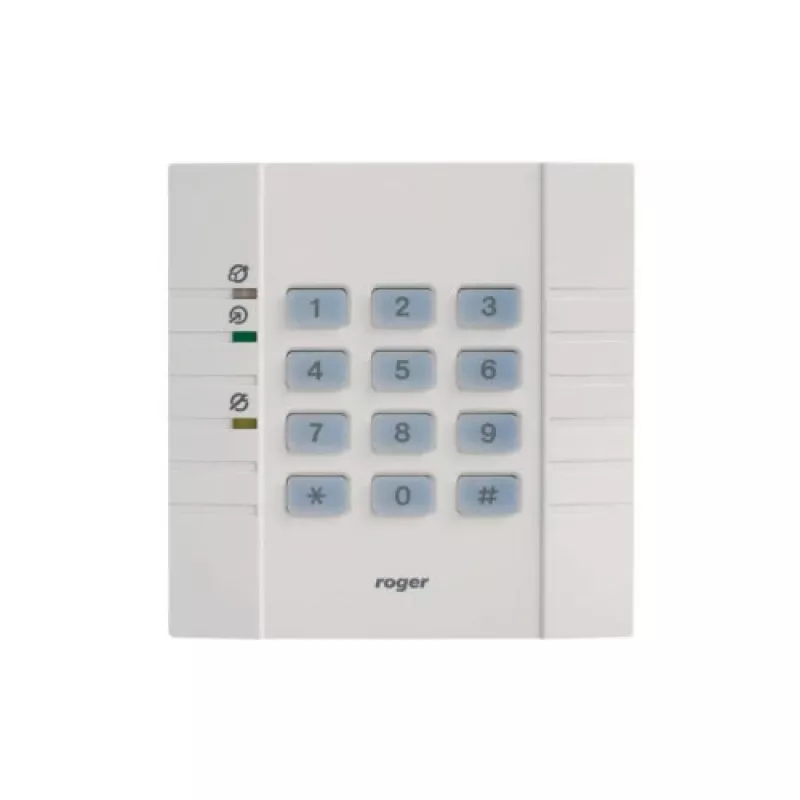

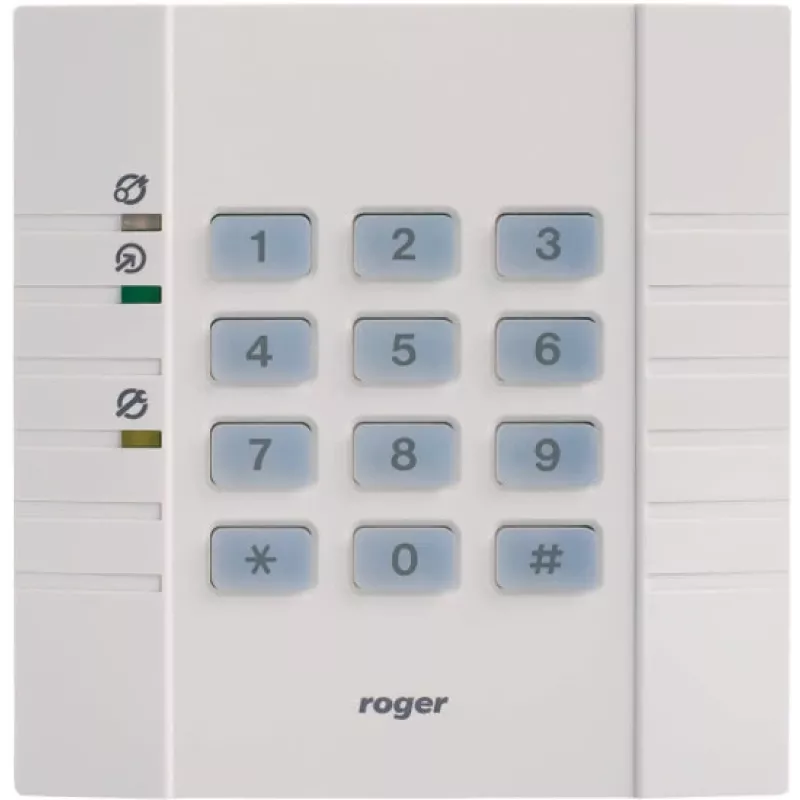

ROGER PR302 Access Controller

The ROGER PR302 Access Controller is a versatile and reliable access control unit designed for modern security systems. It supports up to 2 readers (entry/exit) with multiple interface types including RACS CLK/DTA, Wiegand 26-66bit, and DALLAS. With a user capacity of 4,000 users and an event log of 32,000 events, it is suitable for small to medium-sized installations. The controller features 4 programmable inputs, 2 relay outputs, and 2 OC outputs, providing flexibility for various access control scenarios. It operates on 10-15V DC with a maximum current consumption of 150 mA and supports local and global anti-passback, door monitoring, time schedules, and access groups. The built-in real-time clock and firmware upgradeability ensure long-term reliability. The enclosure is made of ABS plastic and supports DIN rail or wall mounting. Operating temperature range is -10°C to +50°C.

Advantages

Reliable access control with support for multiple reader types and anti-passback features. Easy to install with DIN rail or wall mount options. Firmware upgradeable for future enhancements.

Suitable for

• Small to medium-sized businesses
• Office buildings
• Warehouses
• Educational institutions

Key specifications

• Power Supply: 10-15V DC
• Max Current Consumption: 150 mA
• Number of Readers Supported: 2 (Entry/Exit)
• Reader Interface Types: RACS CLK/DTA, Wiegand 26-66bit, DALLAS
• User Capacity: 4,000 users
• Event Log Capacity: 32,000 events
• Communication Interface: RS485
• Programmable Inputs: 4 (NO/NC)
• Relay Outputs: 2 (1.5A/30VDC)
• OC Outputs: 2 (150mA/30VDC)
• Operating Temperature: -10°C to +50°C
• Enclosure Material: ABS Plastic
• Mounting Type: DIN Rail / Wall Mount
• Anti-Passback: Yes (Local & Global)
• Door Monitoring: Yes
• Time Schedules: Yes
• Access Groups: Yes
• Real-Time Clock: Built-in
• Firmware Upgradeable: Yes
• PC Software Compatibility: RACS 5 (via converter)

Recommendations

For optimal performance, use with ROGER readers and RACS 5 software. Ensure proper power supply and wiring according to the manual.
