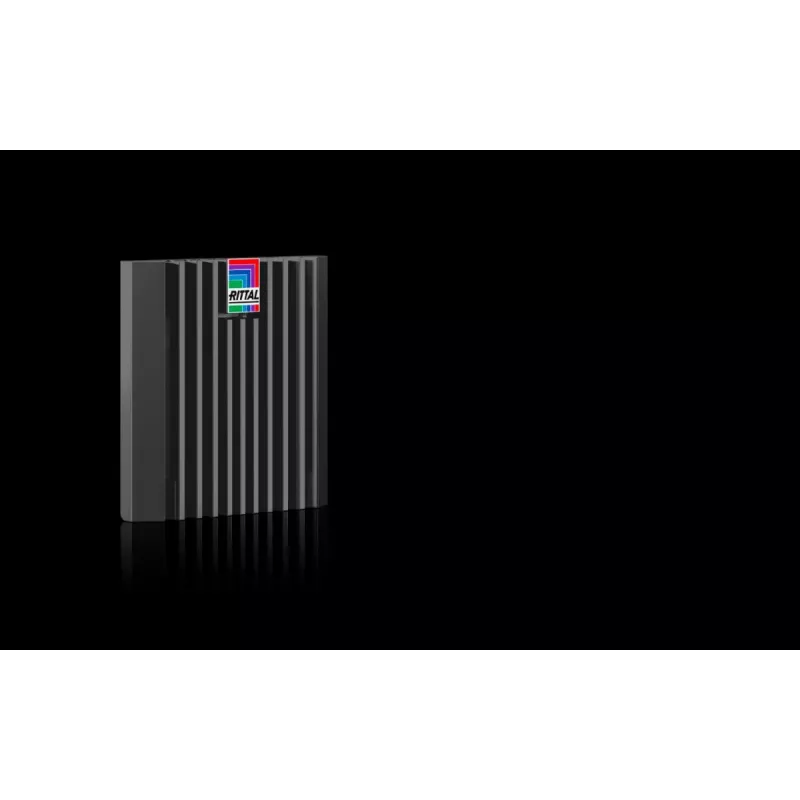

Rittal Blue e+ uitlaatfilter RAL 9005 (3237308)

Cooling units pull air through the enclosure, and that air carries dust and fibers. Without a filter at the outlet, those particles settle on components and reduce cooling performance. This outlet filter for Rittal Blue e+ cooling units stops that contamination before it becomes a problem.

Who is it for

Panel builders and maintenance teams who run Rittal Blue e+ cooling units in dusty or dirty environments. If you need to keep the inside of the enclosure clean and the cooling system efficient, this filter is a direct replacement part.

Main features

• Replacement outlet filter for Rittal Blue e+ cooling units
• Filter class G3 according to EN 779 captures coarse dust and fibers
• Synthetic fiber filter mat with plastic frame
• Snap-in / clip-on installation — no tools required
• Temperature resistant from -20 °C to +80 °C
• Self-extinguishing filter material (F1 according to DIN 53438)
• Pack of 5 pieces

Specifications

• Product type: Outlet Filter
• Compatibility: Rittal Blue e+ Cooling Units
• Colour: RAL 9005 (Jet Black)
• Filter class: G3 (EN 779)
• Material (filter mat): Synthetic fiber
• Material (frame): Plastic
• Installation type: Snap-in / Clip-on
• Temperature resistance: -20 °C to +80 °C
• Fire protection: Self-extinguishing (F1 according to DIN 53438)
• Airflow direction: Unidirectional (from enclosure to ambient)
• Dimensions (filter mat): 290 x 290 x 16 mm (W x H x D)
• Quantity per pack: 5

Tips

Replace the filter mat regularly to maintain airflow and cooling efficiency. Check the filter every few months in dusty environments and replace it when visibly clogged.
