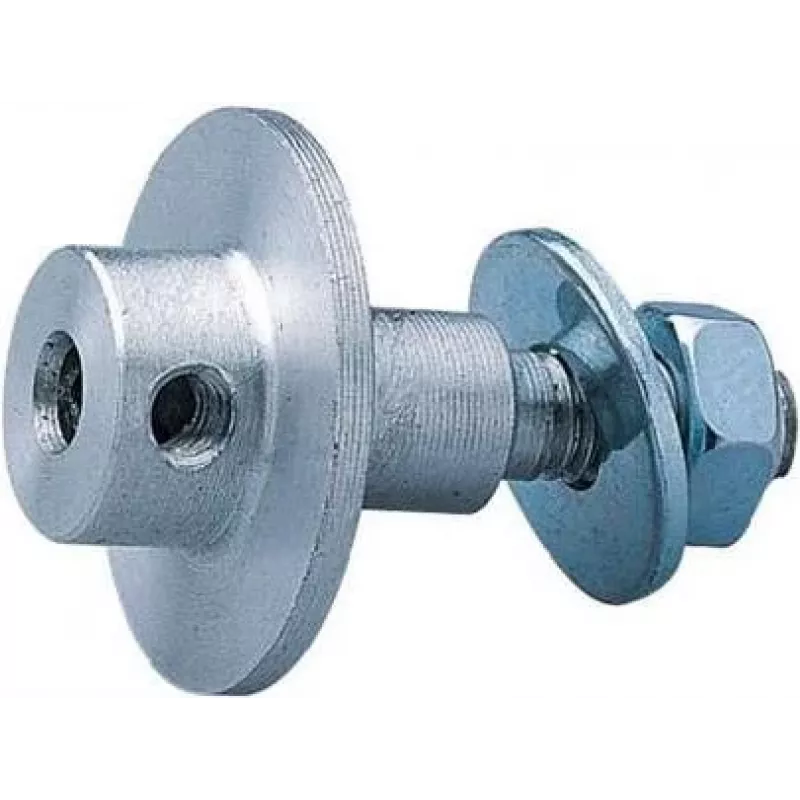

Reely 10586 propellernaaf 5 mm (10586)

Aluminum propeller hub for 5 mm motor shafts, featuring collet clamp mounting and nut-and-washer propeller retention for secure, vibration-free operation in RC aircraft and drones.

Advantages

High-strength aluminum construction with corrosion resistance ensures durability and reliable performance. Easy installation with collet clamp on motor side and nut/washer on propeller side.

Suitable for

• Brushless and brushed RC electric motors with 5 mm shaft
• Model aircraft
• Drones

Key specifications

• Motor shaft diameter: 5 mm
• Propeller bore diameter: 6 mm
• Material: Aluminum
• Colour: Silver
• Overall length: 26 mm
• Outer diameter (propeller mount): 16 mm
• Includes: Propeller hub, nut, washer

Recommendations

Ensure propeller bore matches 6 mm and motor shaft is 5 mm for optimal fit. Check tightness before each flight.
