Laserliner MasterLevel Box 081.260E digitale waterpas

The Laserliner MasterLevel Box 081.260E stands out with its electronic inclination sensor and illuminated LCD, offering precise digital measurements across a full 360° range. Unlike conventional spirit levels, it displays angles in degrees, percent, mm/m, or in/ft, making it versatile for various alignment tasks.

Highlights

• Electronic inclination sensor with 0.1° display resolution
• Accuracy: ±0.1° at 0° and 90°, ±0.2° from 1° to 89°

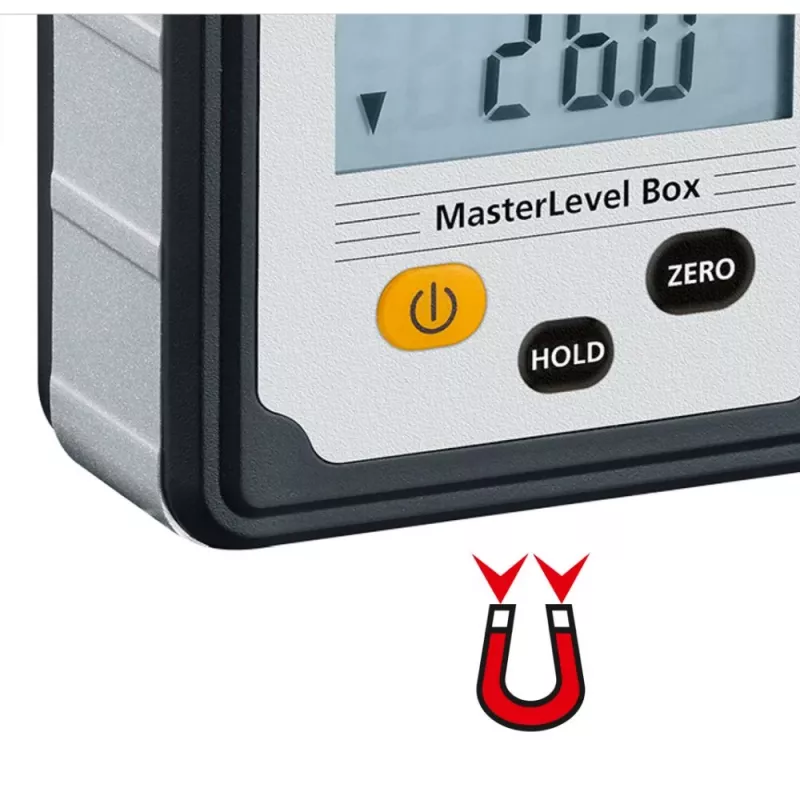

• Strong magnetic base for hands-free operation on metal surfaces
• IP54 dust and splash protection

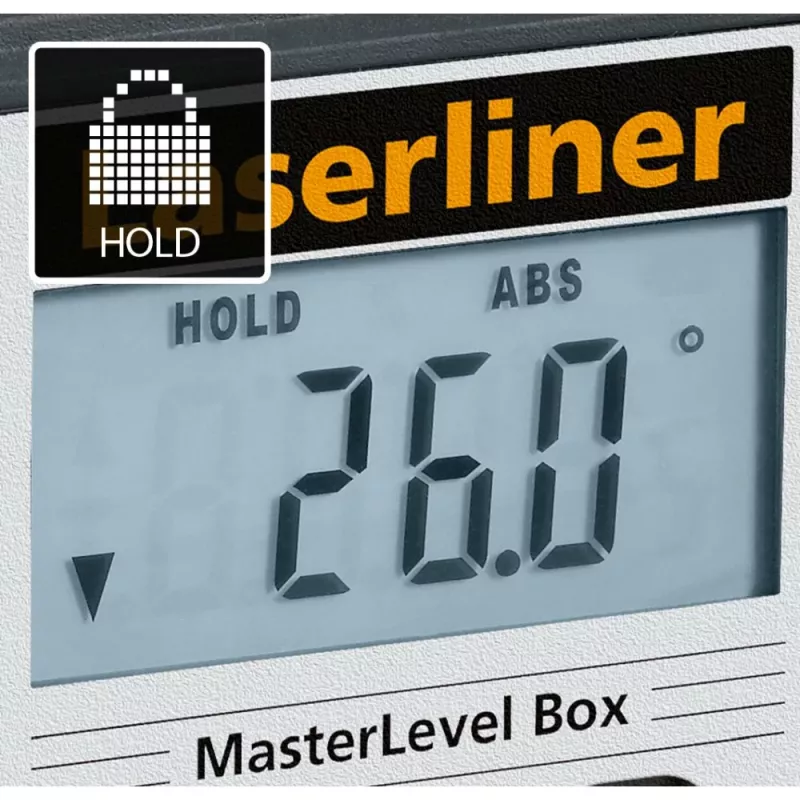

• Hold, reference, and calibration functions
• Automatic shut-off after 3 minutes

In daily use

The illuminated LCD ensures readability in dim conditions, while the robust aluminum housing withstands job site demands. Powered by two AAA batteries with approximately 100 hours of runtime, it is ready for extended use. The reference function allows setting a custom zero point, ideal for measuring relative angles.

Full specifications

• Measurement range: 0° - 360° (4 x 90°)
• Accuracy (0° and 90°): ±0.1°
• Accuracy (1° to 89°): ±0.2°
• Measurement units: degrees (°), percent (%), mm/m, in/ft
• Display: illuminated LCD
• Display resolution: 0.1°
• Magnetic base: yes, strong magnets
• Protection class: IP54
• Power source: 2 x AAA batteries
• Battery life: approx. 100 hours
• Automatic shut-off: after 3 minutes
• Functions: hold, reference, calibration
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Measurement principle: electronic inclination sensor
• Housing material: robust aluminum

Final note

With its digital precision and durable construction, the MasterLevel Box 081.260E is a reliable tool for professionals requiring accurate angle measurements.
