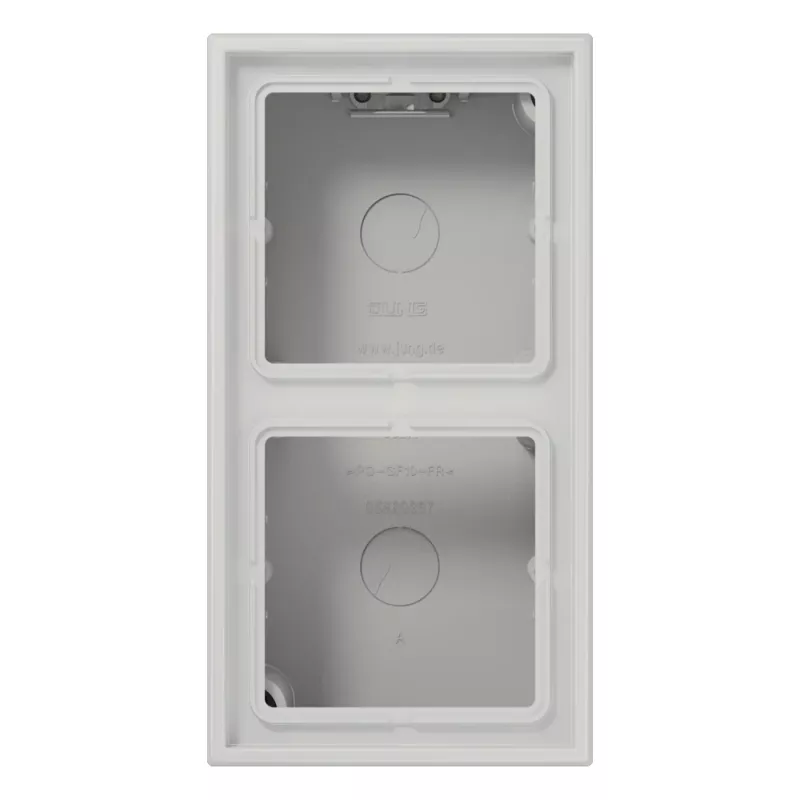

JUNG LS582ALG opbouwbehuizing 2-voudig lichtgrijs

When installing JUNG LS series inserts on a wall, a surface-mounted housing is required to enclose and protect the wiring. The JUNG LS582ALG provides a 2-gang surface-mounted enclosure in light grey, offering a clean and professional finish for indoor installations.

Who is it for

Electricians and installers who need a reliable surface-mounted housing for JUNG LS series inserts in residential or commercial settings.

Main features

• 2-gang surface-mounted housing for JUNG LS series inserts
• Light grey colour with matt finish
• Made of break-proof thermoplastic
• Halogen-free and UV-resistant
• Pre-punched cable entries for easy wiring
• Mountable horizontally or vertically

Specifications

• Product type: Surface-mounted housing
• Number of gangs: 2
• Colour: Light grey
• Material: Thermoplastic, break-proof
• Series: JUNG LS
• Mounting type: Surface-mounted
• Halogen-free: Yes
• UV-resistant: Yes
• Protection class: IP20
• Impact resistance: IK05
• Operating temperature: -5 to +45 °C
• Flammability rating: UL94 V-0
• Surface finish: Matt
• Design: Flat design
• Mounting orientation: Horizontal or vertical
• Cable entry: Pre-punched entries
• Application: Indoor use

Tips

Ensure the housing is compatible with your specific JUNG LS insert before installation. For outdoor or damp locations, consider a housing with a higher IP rating.
