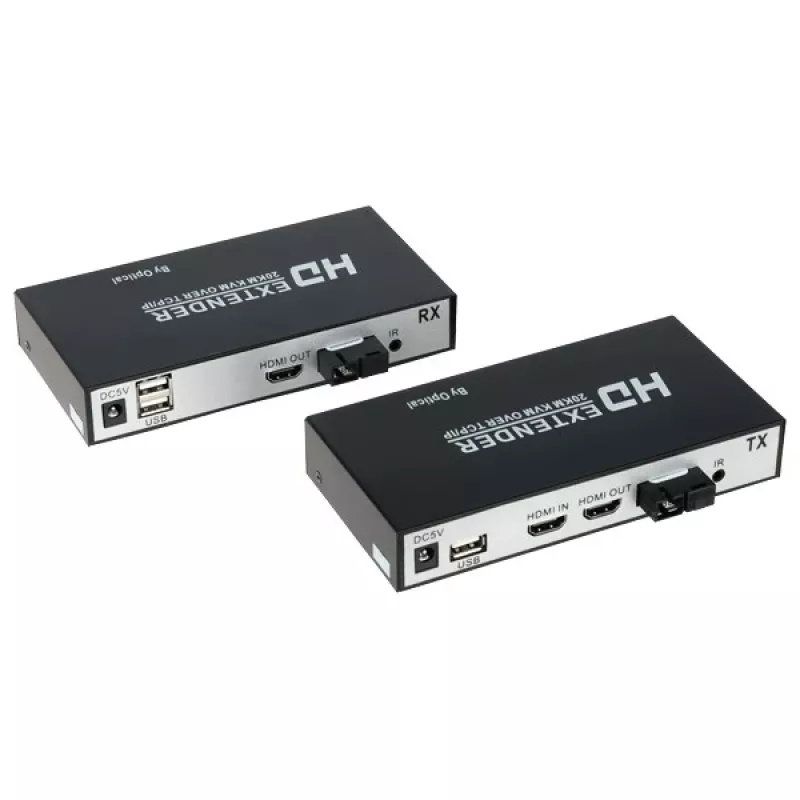

HDMI-converter OFT-20KM

The HDMI Converter-OFT-20KM is a professional-grade HDMI extender that transmits uncompressed HDMI signals over single-mode fiber optic cable up to 20 kilometers. It supports resolutions up to 4K@30Hz and 1080p@60Hz, making it ideal for long-distance AV distribution in commercial and industrial environments.

Advantages

This extender offers near-zero latency, HDCP 1.4 compliance, and robust ESD protection. The metal alloy casing ensures durability, while the included IR pass-through allows remote control extension. With LC duplex connectors and a 10.2 Gbps bandwidth, it delivers reliable performance over extreme distances.

Suitable for

• Digital signage and advertising displays
• Medical imaging and diagnostic systems
• Security and surveillance installations
• Corporate AV systems and conference rooms
• Educational and broadcast facilities

Key specifications

• HDMI Standard: HDMI 1.4
• Max Resolution: 4K (3840x2160) @ 30Hz, 1080p @ 60Hz
• Max Distance: 20 km (12.4 miles)
• Fiber Type: Single-mode (SMF)
• Connector: LC Duplex
• Bandwidth: 10.2 Gbps
• Audio: LPCM, DTS-HD Master Audio, Dolby TrueHD
• IR Pass-through: Yes
• EDID: Pass-through
• Power: DC 5V/1A (2 units)
• Operating Temperature: 0°C to 70°C
• Humidity: 10% to 90% RH
• ESD Protection: ±8kV air, ±4kV contact

Recommendations

For optimal performance, use single-mode fiber optic cable with LC duplex connectors. Ensure proper power supply connection to both transmitter and receiver units. This extender is not recommended for multi-mode fiber installations.
