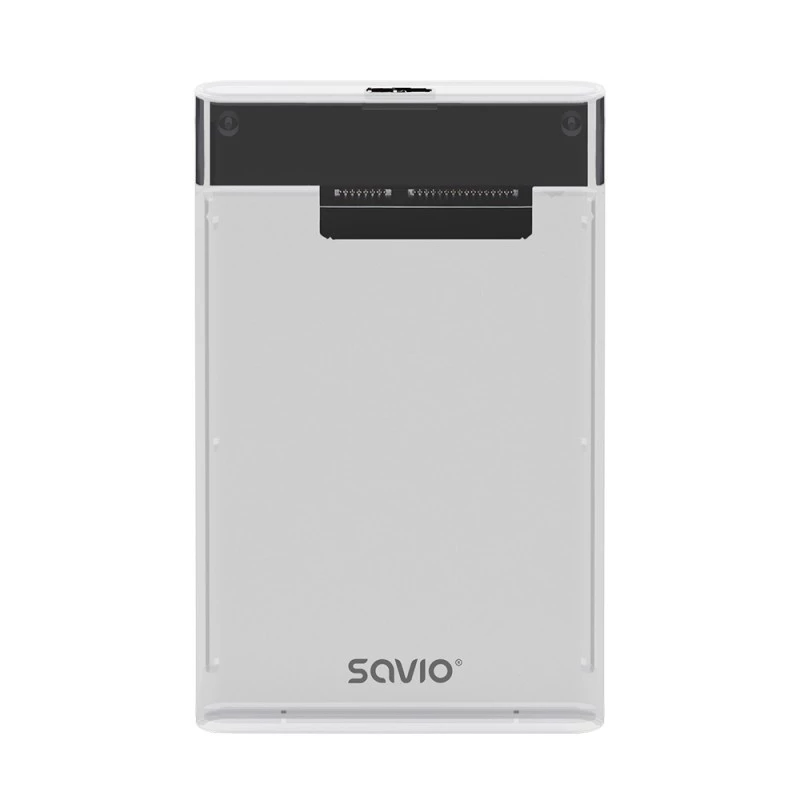

HDD/SSD-behuizing Savio AK-66

The Savio AK-66 2.5" HDD/SSD enclosure protects a single 2.5" SATA HDD or SSD and provides data transfer rates up to 5 Gbps. The compact enclosure, finished in black and transparent accents, connects via Micro-USB to USB Type-A and supports drives with heights of 7 mm and 9.5 mm. It is compatible with Windows, macOS and Linux and is designed for portable storage use.

Advantages

The enclosure offers tool-free compatibility with common 2.5" SATA HDD and SSD formats and a transfer speed of up to 5 Gbps for fast file operations. Its small dimensions (126 × 79 × 13 mm) and operating temperature range from -20°C to 50°C make it convenient for transport and use in varied environments. The dual-colour design (black and transparent) allows quick visual inspection of the installed drive.

Suitable for

• Expanding laptop or desktop storage with a 2.5" SATA HDD or SSD
• Temporarily accessing data on a spare 2.5" drive
• Backing up files and transporting data between computers

Key specifications

• Supported drive size: 2.5"
• Supported drive heights: 7 mm and 9.5 mm
• Supported interfaces: SATA III / SATA II / SATA
• Data transfer rate: up to 5 Gbps
• USB connector: Micro-USB to USB Type-A
• Number of drives supported: 1
• Dimensions: 126 × 79 × 13 mm
• Operating temperature: -20°C to 50°C
• Colour: Black and transparent

How to use

Open the enclosure and insert a compatible 2.5" SATA HDD or SSD (7 mm or 9.5 mm height), secure the drive according to the enclosure's fitting method, then connect the Micro-USB cable to the enclosure and the USB Type-A plug to your computer. The device is recognized by Windows, macOS and Linux without additional drivers; use your operating system's file manager or disk utility to access or format the drive as needed.

Recommendations

Store and operate the enclosure within the specified temperature range (-20°C to 50°C). For reliable data transfers, use the included Micro-USB cable and connect directly to a USB port on the host computer rather than through unpowered hubs. Handle the drive and enclosure carefully to avoid impacts while the drive is in operation.
