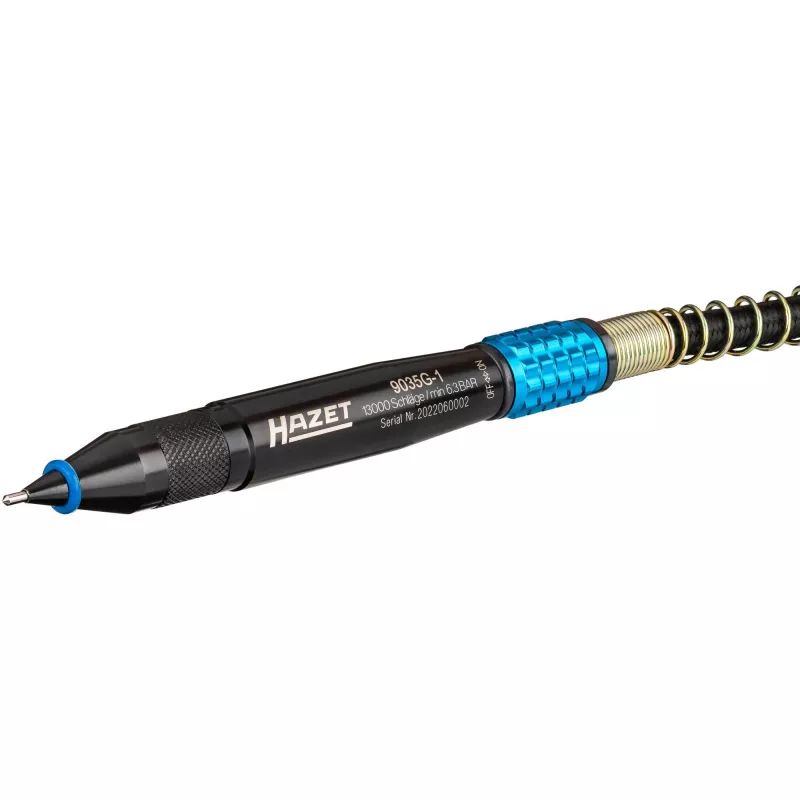

HAZET 9035G-1 pneumatische graveerstift

Marking, engraving, deburring, and cleaning on metal, plastic, glass, stone, or ceramics often requires a tool that is both precise and comfortable to use for extended periods. The HAZET 9035G-1 pneumatic engraving pen addresses this need with an ergonomic, pen-shaped design and adjustable stroke depth.

Who is it for

This tool is suitable for workshops, metalworkers, jewellers, and anyone who needs to permanently mark or texture hard surfaces. It works on a wide range of materials including metal, plastic, glass, stone, and ceramics.

Main features

• Pneumatic operation with 6.3 bar (90 psi) working pressure
• High-speed action: 13,000 strokes per minute
• Adjustable stroke depth for fine or deep marking
• Ergonomic pen-shaped aluminium housing for fatigue-free handling
• Tungsten carbide engraving needle for durability
• Low air consumption: 28 l/min
• 1/4" NPT air inlet thread

Specifications

• Tool type: Pneumatic engraving pen
• Operating pressure: 6.3 bar (90 psi)
• Air consumption: 28 l/min
• Strokes per minute: 13,000 min⁻¹
• Sound pressure level: 78 dB(A)
• Vibration level: 2.9 m/s²
• Air inlet thread: 1/4" NPT
• Recommended hose diameter: 10 mm
• Engraving needle material: Tungsten carbide
• Housing material: Aluminium
• Primary application: Engraving, marking, deburring, cleaning
• Suitable materials: Metal, plastic, glass, stone, ceramics
• Stroke depth adjustment: Yes
• Design: Ergonomic, pen-shaped
• Included accessories: 1x engraving needle

Tips

For best results, ensure a clean, dry air supply and adjust the stroke depth according to the material hardness. Use a hose with at least 10 mm inner diameter to maintain consistent performance.
