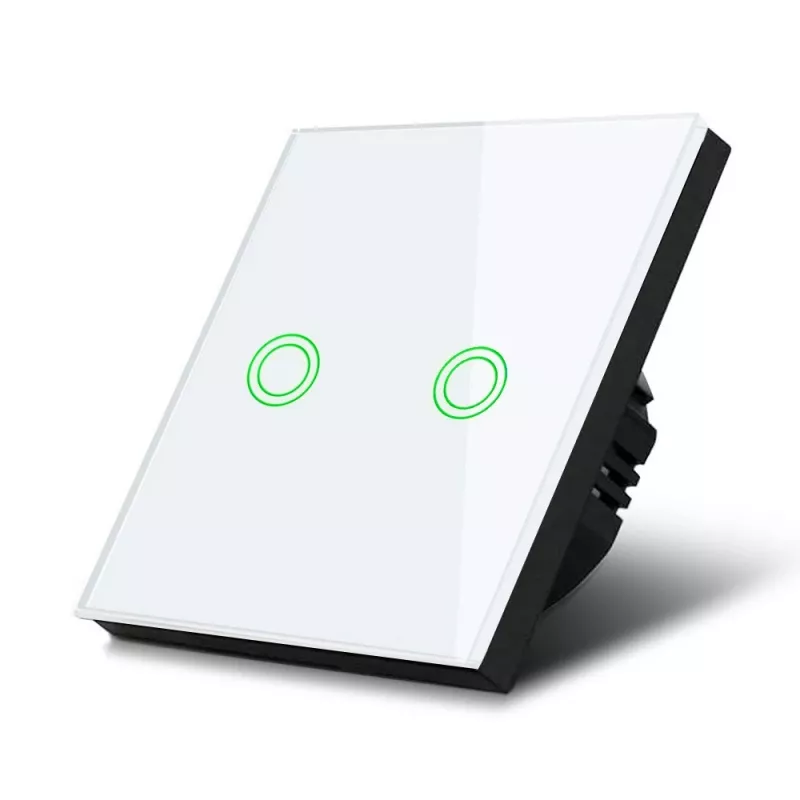

Glas-touch-lichtschakelaar Maclean MCE704W

The Maclean MCE704W Glass Touch Light Switch combines modern capacitive touch technology with a sleek tempered glass panel, offering a premium control solution for residential and commercial lighting. Designed for single-gang wall mounting, it provides reliable switching for incandescent, halogen, LED, and CFL lamps up to 300W (incandescent) or 100W (LED/CFL). The switch features a blue LED backlight when off and a red LED when on, ensuring clear status indication in any lighting condition.

Advantages

Elegant white tempered glass finish complements contemporary interiors. Capacitive touch operation eliminates mechanical wear, backed by a 100,000-cycle mechanical life. Low standby power consumption (<0.1W) contributes to energy efficiency. Easy installation into standard 60mm mounting boxes with live and neutral wiring.

Suitable for

• Living rooms, bedrooms, and hallways
• Office spaces and meeting rooms
• Hotel rooms and hospitality environments
• Retail stores and showrooms

Key specifications

• Switch Type: Capacitive Touch
• Number of Gangs: 1
• Color: White
• Panel Material: Tempered Glass
• Base Material: Fire-retardant PC Plastic
• Input Voltage: AC 110-240V, 50/60Hz
• Max Load (Incandescent/Halogen): 3-300W
• Max Load (LED/CFL): 3-100W
• Standby Power Consumption: <0.1W
• Operating Temperature: -20°C to +70°C
• Operating Humidity: 10% to 93% RH (non-condensing)
• Backlight Color (Off): Blue LED
• Backlight Color (On): Red LED
• Installation Type: Wall-mounted (fits standard 60mm mounting box)
• Wiring Requirement: Live (L) and Neutral (N)
• Certifications: CE, RoHS
• Mechanical Life: 100,000 operations
• Protection Rating: IP20

Recommendations

For best performance, use with compatible dimmable LED lamps if dimming is required. Ensure neutral wire is available at the installation point. Suitable for indoor use only.
