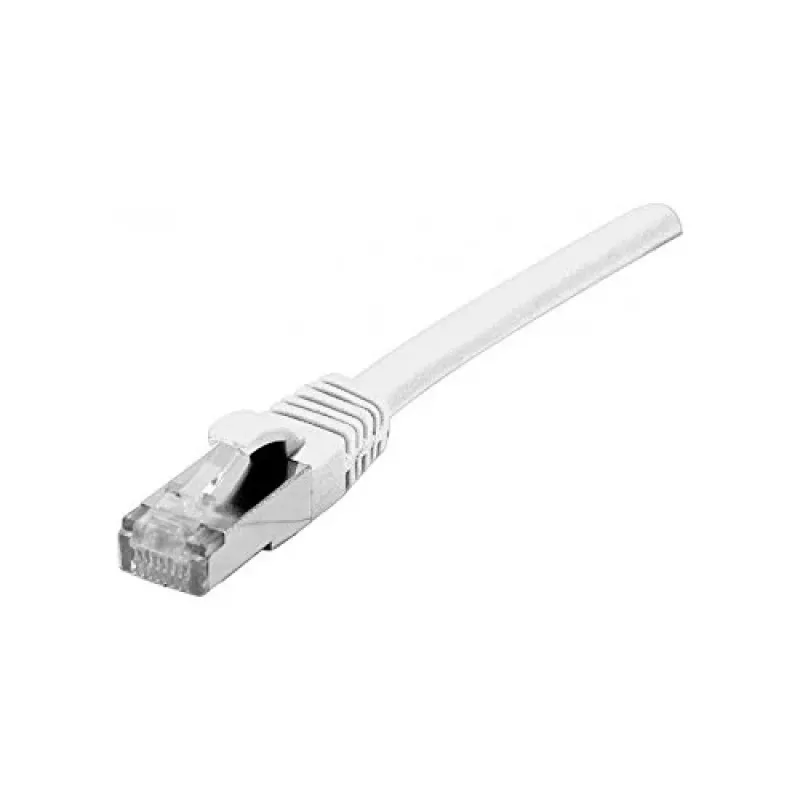

EXERTIS CONNECT Cat 6A S/FTP patchkabel, 5 m, wit 858504

Connect a workstation to a 10 Gigabit network in an office or data centre with this 5-metre Cat 6A patch cable. The white LSZH jacket keeps cable runs tidy, while the slim bend protection boot fits into high-density patch panels.

Key specifications

• Category: Cat 6A (Class EA)
• Shielding: S/FTP (PiMF) – foil on each pair plus overall braid
• Length: 5 m
• Colour: White
• Connectors: RJ45 male to RJ45 male, gold-plated contacts (50 µ)
• Conductor: Copper, AWG 26/7 stranded
• Jacket: LSZH (low smoke zero halogen)
• Bandwidth: up to 500 MHz
• Data rate: up to 10 Gbps (10GBASE-T)
• Wiring: TIA/EIA 568B
• Compliance: ISO/IEC 11801, EN 50173, EIA/TIA 568C.2
• Operating temperature: -20 °C to +60 °C

Why choose it

PiMF shielding and a braided screen reject electromagnetic interference, so the cable keeps 10 Gbps signals stable even in noisy server rooms. The stranded copper conductors stay flexible for easy routing, and the LSZH jacket emits very little smoke and no halogen gases in a fire.

Ideal use cases

• 10GBASE-T links between switches and servers
• High-density patching in data centres
• PoE+ connections to access points and IP cameras
• Office LAN runs where LSZH is required

Good to know

The slim boot is moulded to reduce the bend radius at the connector, which helps when cables are packed closely together. The cable is flame retardant according to IEC 60332-1.
