Equip Cat.6 ongeafschermde keystone jack LSA, slank type

The equip® Keystone Jack is a compact Cat.6 unshielded connector designed for reliable network cabling. Constructed from quality materials and fitted with gold-plated contacts, this slim keystone jack meets ISO/IEC 11801 and EN 50173 standards and fits standard faceplates, wall outlets and patch panels for flexible Cat.6 installations.

Advantages

The slim form factor (14.5 × 20.5 × 31.6 mm) saves space in densely populated panels and faceplates while gold-plated contacts provide improved conductivity and corrosion resistance. Compliance with ISO/IEC 11801 and EN 50173 ensures interoperability and predictable performance in structured cabling systems.

Suitable for

• Structured Cat.6 horizontal cabling in offices and data closets
• Integration into faceplates, wall-mount outlets and patch panels
• Upgrading or repairing existing network jacks

Key specifications

• Type: Keystone Jack, Unshielded (UTP), Slim
• Category: Cat.6
• Contacts: Gold-plated
• Standards: ISO/IEC 11801, EN 50173

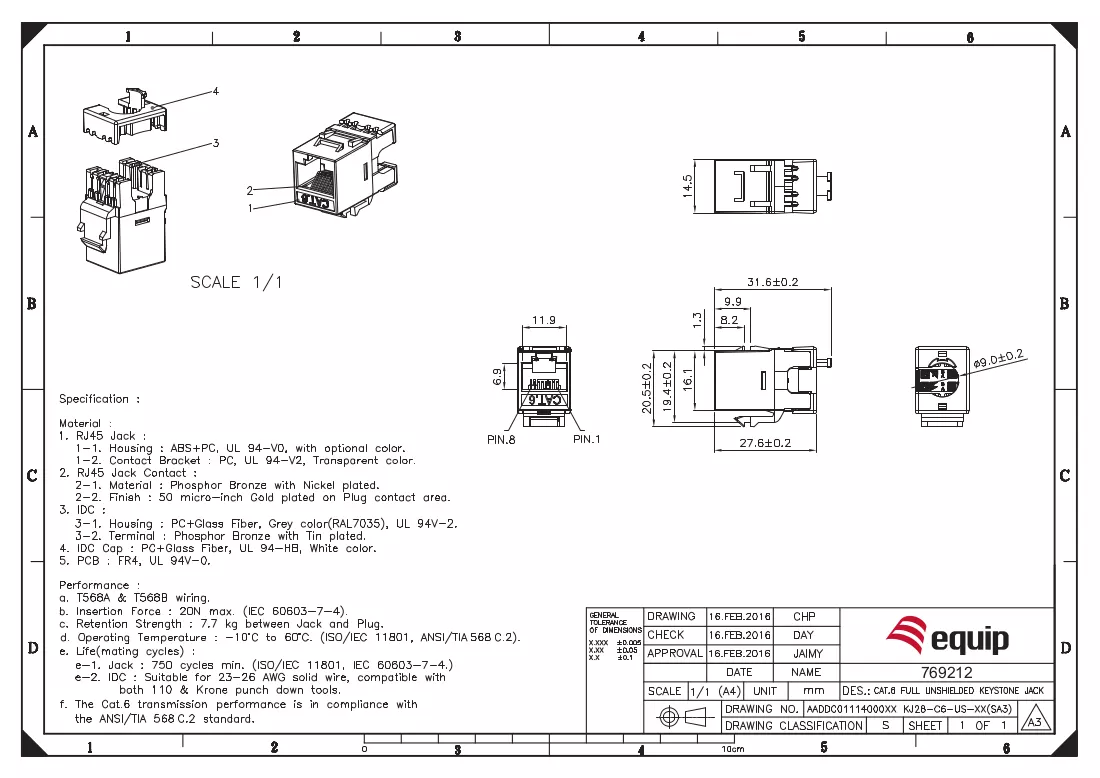

• Dimensions: 14.5 mm (W) × 20.5 mm (D) × 31.6 mm (H)
• Brand: EQUIP
• MPN: 769212
• EAN: 4015867176559

How to use

Terminate the Cat.6 cable conductors according to the T568A or T568B wiring scheme, insert the wires into the jack's IDC terminals and use an appropriate punch-down tool to secure the connections. Snap the keystone jack into the chosen faceplate, wall outlet or patch panel opening and verify connectivity with a network tester.

Recommendations

When installing multiple keystone jacks in a single enclosure, ensure adequate spacing and avoid excessive cable bending to maintain Cat.6 performance. Use compatible faceplates and panels and test each connection after installation.
