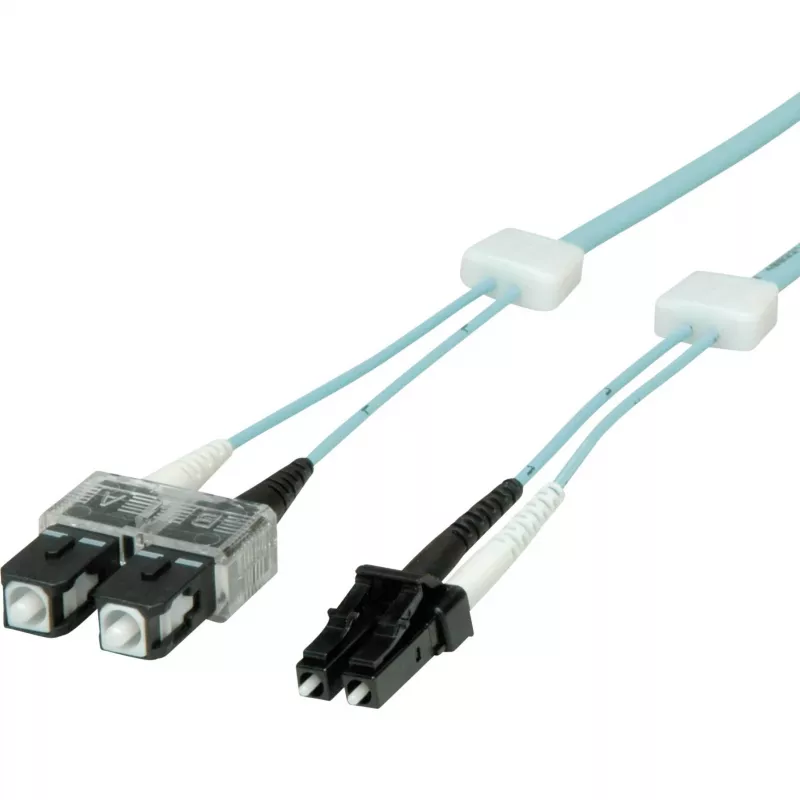

EasyLan glasvezel-patchkabel SC duplex naar LC duplex multimode OM3 2m aqua

The EasyLan Fiber Optic Patch Cable provides a reliable and high-performance connection for your network infrastructure. Designed for multimode OM3 applications, this duplex patch cable features SC to LC connectors and a 2-meter length, making it ideal for data centers, server rooms, and enterprise networks.

Advantages

This cable ensures low insertion loss and high return loss, supporting high-speed data transmission up to 10 Gigabit Ethernet. The LSZH jacket material provides safety in enclosed spaces, reducing smoke and toxic fumes in case of fire. The aqua color jacket allows for easy identification of OM3 fiber.

Suitable for

• Gigabit Ethernet and 10 Gigabit Ethernet networks
• Fibre Channel applications
• Data center patching and cross-connects
• High-speed network infrastructure

Key specifications

• Cable type: Fiber Optic Patch Cable
• Connector A: SC Duplex
• Connector B: LC Duplex
• Fiber type: Multimode OM3
• Core/Cladding: 50/125 µm
• Cable length: 2 m
• Number of fibers: 2 (Duplex)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Insertion loss: < 0.3 dB
• Return loss: > 30 dB
• Attenuation (850nm): 3.5 dB/km
• Attenuation (1300nm): 1.5 dB/km
• Bandwidth (850nm): 1500 MHz*km
• Bandwidth (1300nm): 500 MHz*km
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC and LC interfaces.
