Gebogen kabelgoot ASSMANN Electronic DA-90505

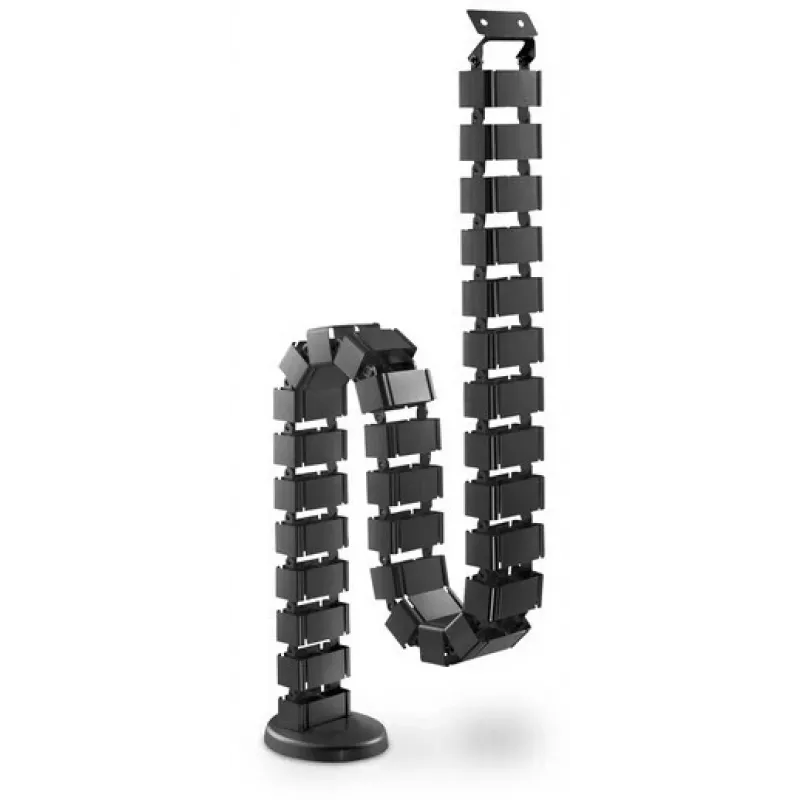

The DIGITUS Curve cable tray ASSMANN Electronic DA-90505 is a flexible cable routing system designed for tidy cable management under desks, including height-adjustable tables. Made from durable Acrylonitrile Butadiene Styrene (ABS) with metal components and finished in black, the cable tray has four separate internal channels and removable links so the length can be adjusted to fit tables up to 130 cm in height. The weighted metal foot provides floor stability while the top angle attaches to the table, and each module features a flexible opening for easy cable entry and exit.

Advantages

The DA-90505 combines a durable ABS outer case with metal parts for stability, offering a compact footprint (outer case: 530 × 380 × 470 mm) and a narrow channel profile (width 67 mm, diameter 6.6 cm, depth 35 mm). Its modular construction allows adding or removing links to set a precise length, and its four separated channels keep different cable types organized and prevented from tangling. The weighted foot and top-angle attachment ensure the routing stays in place during desk height adjustments.

Suitable for

• Under-desk cable management for home and office workstations
• Height-adjustable desks up to 130 cm
• Organizing power, data and monitor cables separately

Key specifications

• Brand: DIGITUS (ASSMANN Electronic)
• Model / MPN: DA-90505
• EAN: 4016032463313
• Material: Acrylonitrile Butadiene Styrene (ABS), Metal
• Product colour: Black
• Outer case dimensions: 530 × 380 × 470 mm
• Channel width: 67 mm
• Channel diameter: 6.6 cm
• Depth: 35 mm
• Max table height supported: 130 cm
• Four separate internal channels

How to use

Attach the top angle of the cable tray to the underside of the table at the desired position. Adjust the length by adding or removing individual links until the bottom reaches the floor while maintaining proper tension. Route cables through the flexible openings of the appropriate internal channels, keeping power and data lines separated as needed. Position the weighted metal foot on the floor to stabilise the tray and allow the cable routing to fold neatly when the desk height is adjusted.

Recommendations

For best results, separate high-voltage power cables from low-voltage data and monitor cables into different channels, avoid overfilling the channels to prevent compression, and secure the top attachment firmly to the table frame. Regularly check that the links are locked and the weighted foot remains stable.
