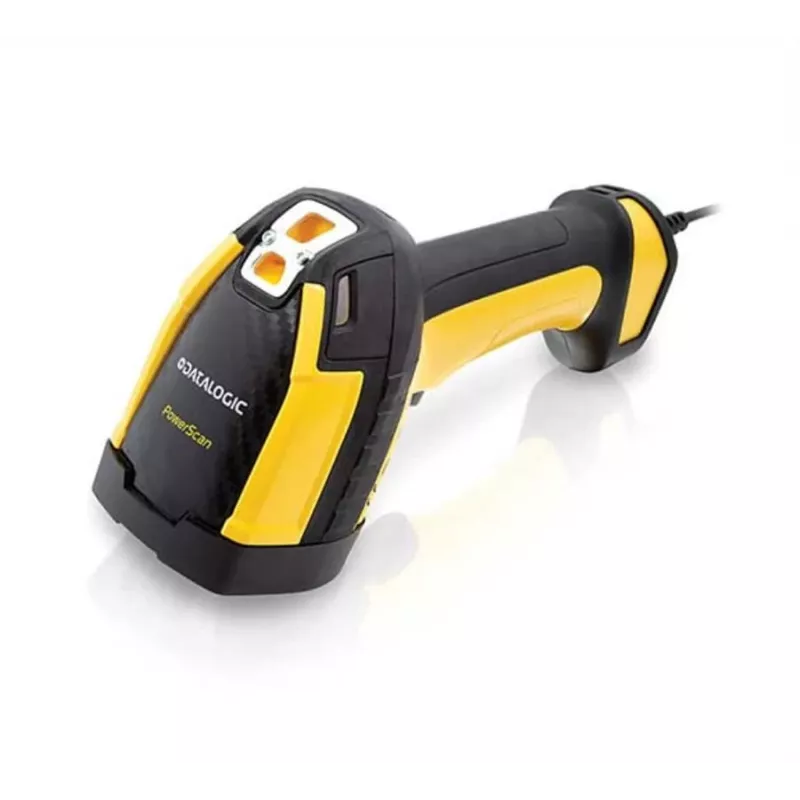

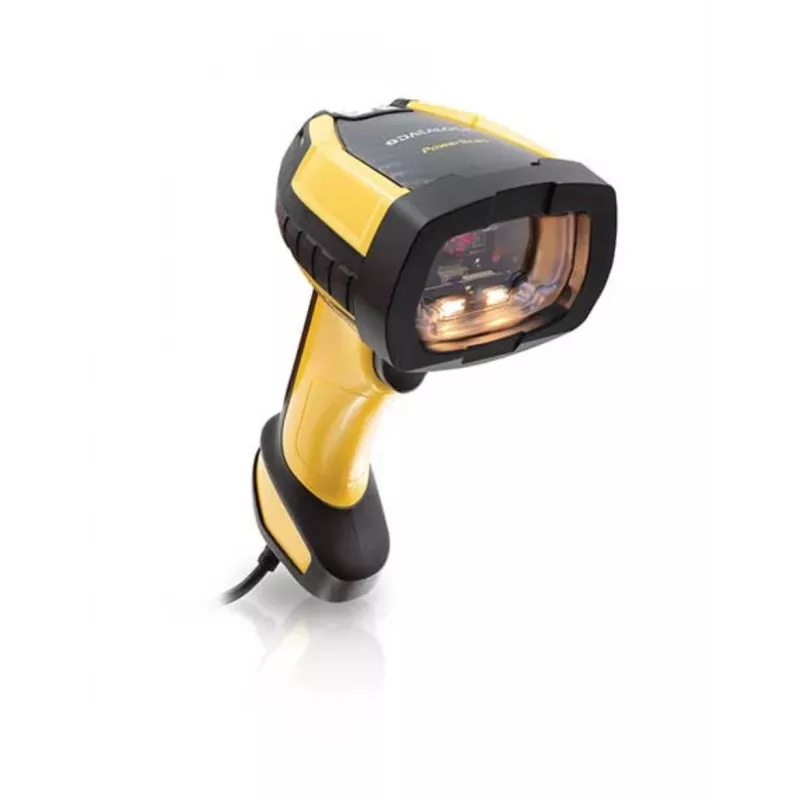

Datalogic PowerScan PD9630-SR - barcodescanner

In busy warehouses and manufacturing floors, barcode scanning must be fast, accurate, and able to survive harsh treatment. The Datalogic PowerScan PD9630-SR answers that need with a rugged corded scanner built for industrial environments. Its 2D area imager captures 1D, 2D, and postal codes from contact to over 1 meter, while the high-visibility yellow/black housing and 3GL feedback keep operators productive even in noisy settings.

Who is it for

This scanner is ideal for warehouse staff, logistics operators, and manufacturing line workers who require a dependable, drop-resistant device for high-volume scanning tasks. It suits environments where dust, moisture, and rough handling are daily challenges.

Main features

• 2D area imager reads 1D, 2D, and postal barcodes, including Digimarc (optional)
• Standard Range (SR) optics with reading distance from contact to over 1.0 m (40 in)
• Rugged design: IP65/IP67 sealing, 2.5 m drop resistance, 20 kV ESD protection
• Datalogic’s 3GL™ (3 Green Lights) and vibration provide clear scan confirmation
• Multiple interfaces: USB, RS-232, Keyboard Wedge
• Operates in temperatures from -20 to 50 °C and 0–95% humidity

Specifications

• Scanner type: 2D area imager (1D & 2D)
• Connectivity: Corded
• Host interfaces: USB, RS-232, Keyboard Wedge
• Minimum resolution: 4 mil (1D), 6.6 mil (2D)
• Field of view: 48° H x 30° V
• Aiming: Red LED; Illumination: White LED
• Feedback: Beeper, 3GL™, vibration
• Power supply: 4.5 - 14 VDC
• Colour: Yellow/Black

Tips

For best performance, position the scanner at a slight angle to reflective barcodes and keep the scan window clean. Use the appropriate interface cable for your host system to ensure reliable data transmission.
