Beugel Multibrackets M VESA Super slank Tilt & Turn

The Multibrackets M VESA Super Slim Tilt & Turn is a low-profile mounting bracket for flat screens from 32" up to 65", supporting up to 40 kg. Designed for seamless integration, the slim black mount keeps the display close to the wall with a minimum distance of 29 mm and extends to 270 mm for flexible viewing positions. It supports VESA patterns from 100 x 100 mm up to 400 x 400 mm and can be expanded to 600 x 400 mm using an optional VESA extender kit. The mount is part of the Super Slim Series and combines a compact design with durable materials to provide reliable screen support and adjustable viewing angles.

Advantages

The M VESA Super Slim Tilt & Turn offers a minimal 29 mm low-profile design without sacrificing strength, carrying screens up to 40 kg while remaining lightweight. Built-in flex arms allow smooth extension, tilt and turn adjustments to optimize viewing angles. Installation is simplified with an included template, tool kit and built-in bubble level, and one-person tilt adjustment enables quick on-site alignment. The product is design protected under EU Community design 001717976-0001.

Suitable for

• Mounting 32"–65" LED and OLED flat panels
• Home living rooms and bedrooms where a discreet profile is required
• Office meeting rooms and reception areas with variable viewing angles
• Public displays and retail installations requiring compact mounting

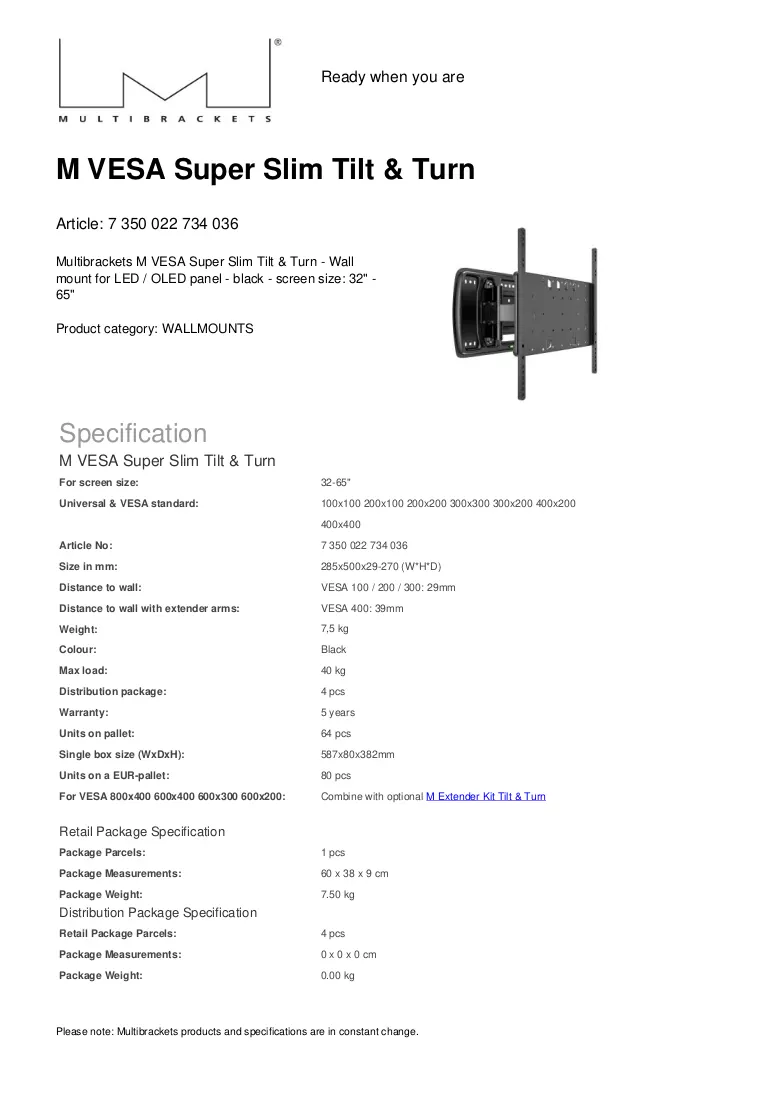

Key specifications

• Maximum screen size: 65"
• Maximum weight capacity: 40 kg
• Supported VESA: 100 x 100 mm up to 400 x 400 mm (optional extender to 600 x 400 mm)
• Minimum distance to wall: 29 mm
• Maximum extension from wall: 270 mm
• Tilt range: 0° to +7° (tilt to reduce glare)
• Turn range: -20° to +20°
• Product colour: Black
• Weight: 7.5 kg

How to use

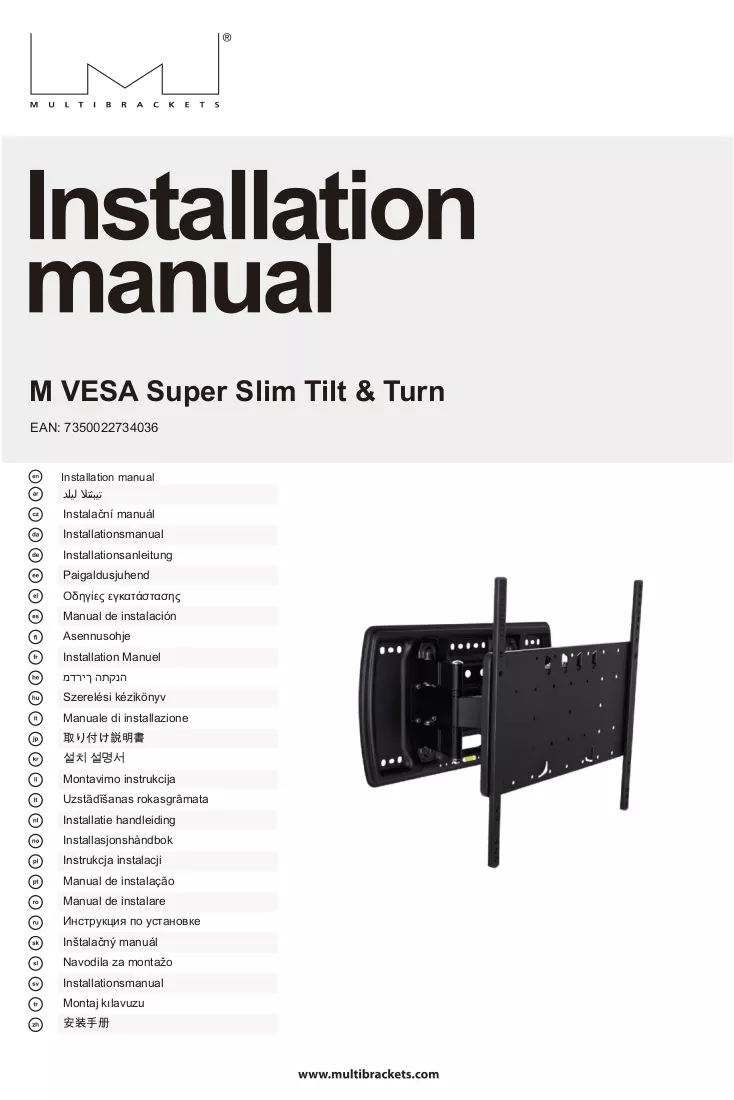

Attach the bracket to a suitable wall surface using the included installation template and tools, following the VESA pattern that matches your screen. Fix the mount securely, use the built-in bubble level to ensure accurate alignment, then hang the display and fasten it according to the instructions. Adjust the flex arms to extend the display up to 270 mm if needed, tilt the screen within the 0°–7° range to reduce glare and turn it up to ±20° to achieve the desired viewing angle. One-person tilt adjustment allows fine-tuning without additional help.

Recommendations

Ensure wall fixing is suitable for the combined weight of the mount and display; use proper anchors for drywall, masonry or stud mounting. If your display uses a VESA pattern larger than 400 x 400 mm, use the optional VESA extender kit to achieve compatibility and follow the extender instructions during installation.
