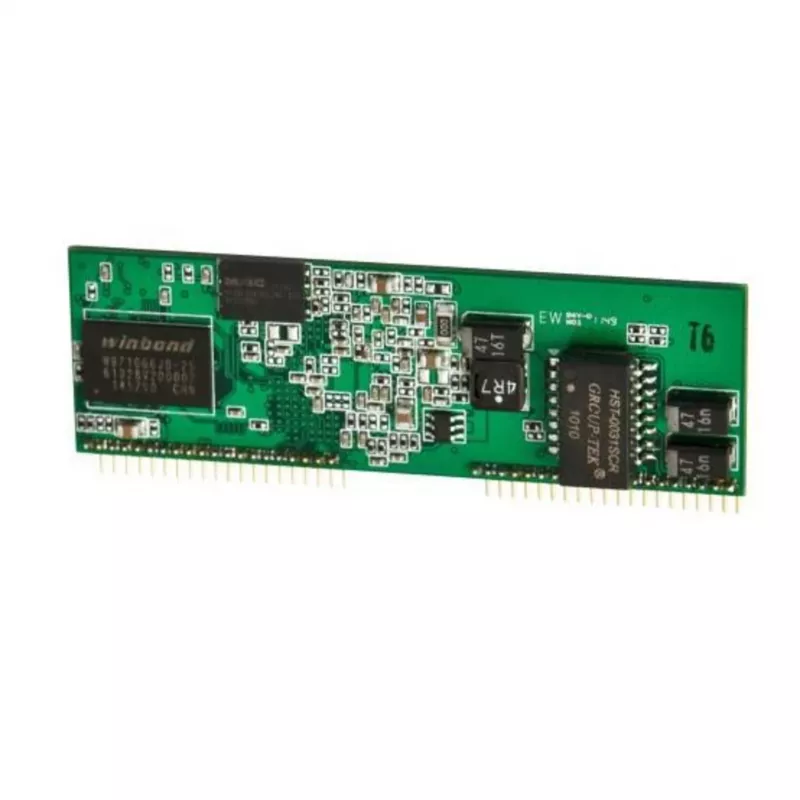

ALLNET ALL5002CPU controlprocessor

The ALLNET ALL5002CPU is a high-performance control processor designed for building automation, smart home, and industrial IoT applications. Powered by an ARM Cortex-A Series processor and running Debian Linux, it offers a robust platform for modular expansion and reliable 24/7 operation.

Advantages

This control processor features 512 MB DDR3 RAM and 4 GB eMMC internal storage, ensuring smooth operation for automation tasks. With two expansion slots for ALL5002 modules, it provides flexibility to adapt to various system requirements. The DIN rail mounting and wide power input range (12-24V DC) make it ideal for industrial environments.

Suitable for

• Building automation and smart home systems
• Industrial IoT and control applications
• Modular automation projects requiring expandability

Key specifications

• Processor: ARM Cortex-A Series
• Operating System: Debian Linux
• RAM: 512 MB DDR3
• Storage: 4 GB eMMC + MicroSD slot
• Network: 1x Gigabit Ethernet (RJ45)
• USB: 2x USB 2.0 Type-A
• Power Input: 12-24V DC (terminal block)
• Mounting: 35mm DIN rail
• Expansion: 2x ALL5002 module slots
• RTC: Yes, with battery backup
• Operating Temperature: 0°C to 50°C
• Power Consumption: < 5W

Recommendations

For optimal performance, pair with ALLNET ALL5002 expansion modules and use a stable 12-24V DC power supply. The open-source SDK and web interface simplify integration and management.
