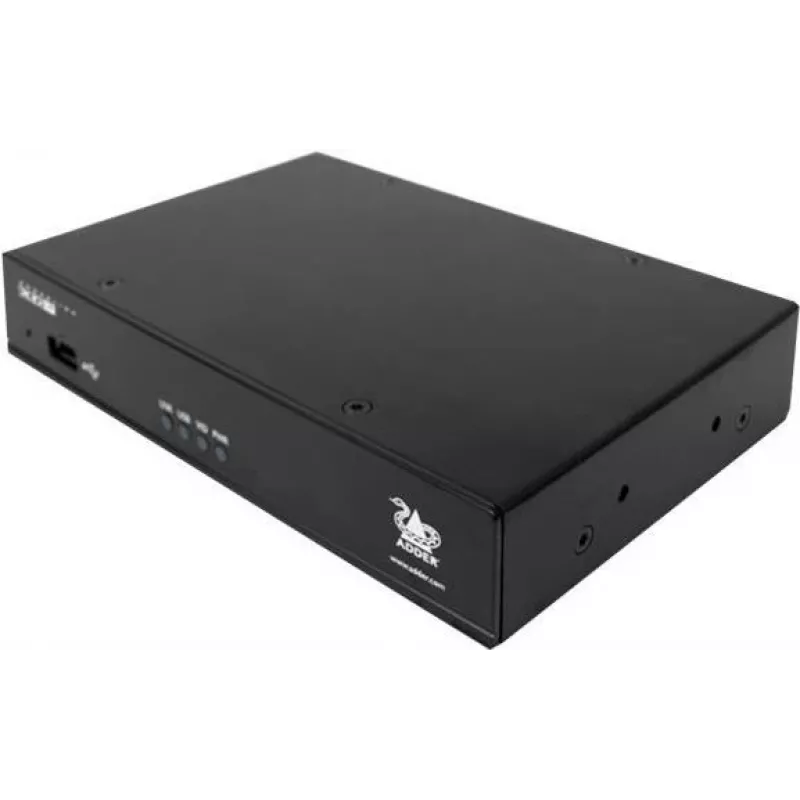

Adder AdderLink XDIP-POE KVM/audio/USB-extender over IP tot 100 m

The Adder AdderLink XDIP-POE is a high-performance KVM, audio, and USB extender that enables seamless extension of a computer workstation up to 100 meters over a single CATx cable. Leveraging Power over Ethernet (PoE) for simplified installation, this extender delivers near-zero latency and supports resolutions up to 1920x1200 @ 60Hz, making it ideal for demanding professional environments.

Advantages

Experience true flexibility with the AdderLink XDIP-POE. Its PoE capability eliminates the need for a local power supply at the remote end, reducing cable clutter and installation costs. The extender supports point-to-point, point-to-multipoint, and multipoint-to-multipoint (matrix) configurations, allowing you to build a custom KVM matrix system. With AES 128-bit encryption, your data remains secure during transmission.

Suitable for

• Control rooms and broadcast studios requiring reliable KVM extension
• Industrial automation and manufacturing environments
• Medical imaging and diagnostic workstations
• Education and training facilities with remote computer access
• Any scenario where a user needs to operate a computer from a distance with full USB and audio support

Key specifications

• Max Video Resolution: 1920 x 1200 @ 60Hz (WUXGA)
• Video Interface: DVI-I (Single Link)
• USB Support: USB 2.0 (HID, Mass Storage, Isochronous)
• Audio Support: Stereo Line In/Out (3.5mm jacks)
• Max Extension Distance: 100 meters (330 feet) over CAT5e/6/7
• Network Interface: 1 x Gigabit Ethernet (RJ-45)
• Power Supply: Power over Ethernet (PoE) IEEE 802.3af Class 3 or 12V DC external power adapter
• Latency: Near zero (<5ms)
• Security: AES 128-bit encryption
• Management: Web interface, API
• Chassis Material: Metal
• Operating Temperature: 0 to 40°C (32 to 104°F)

Recommendations

For optimal performance, use high-quality CAT6 or CAT7 cabling. The extender is OS independent and works with any operating system. Optional rack mount and VESA mount kits are available for flexible installation.
