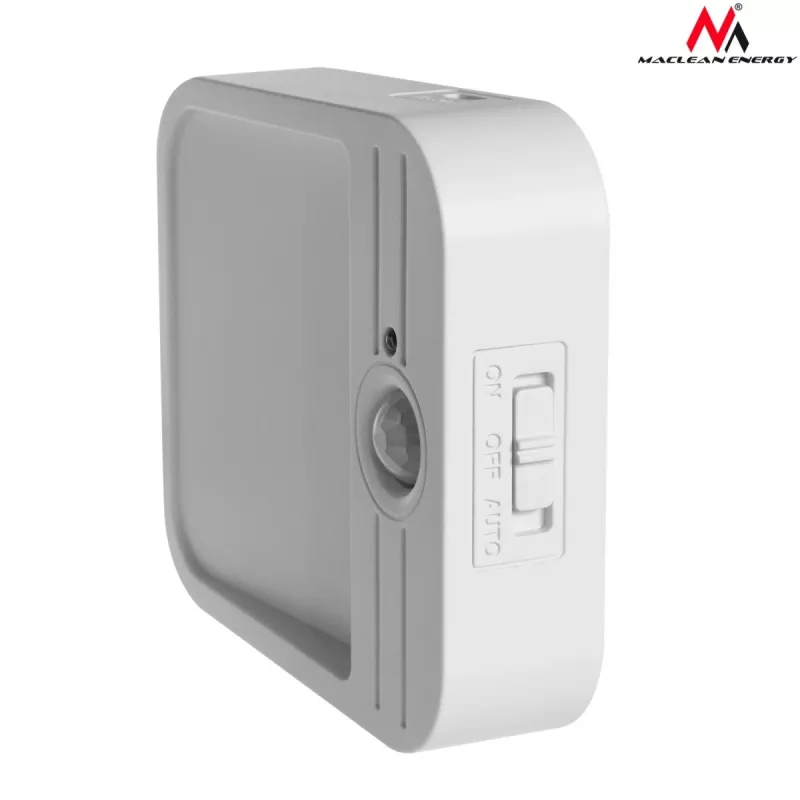

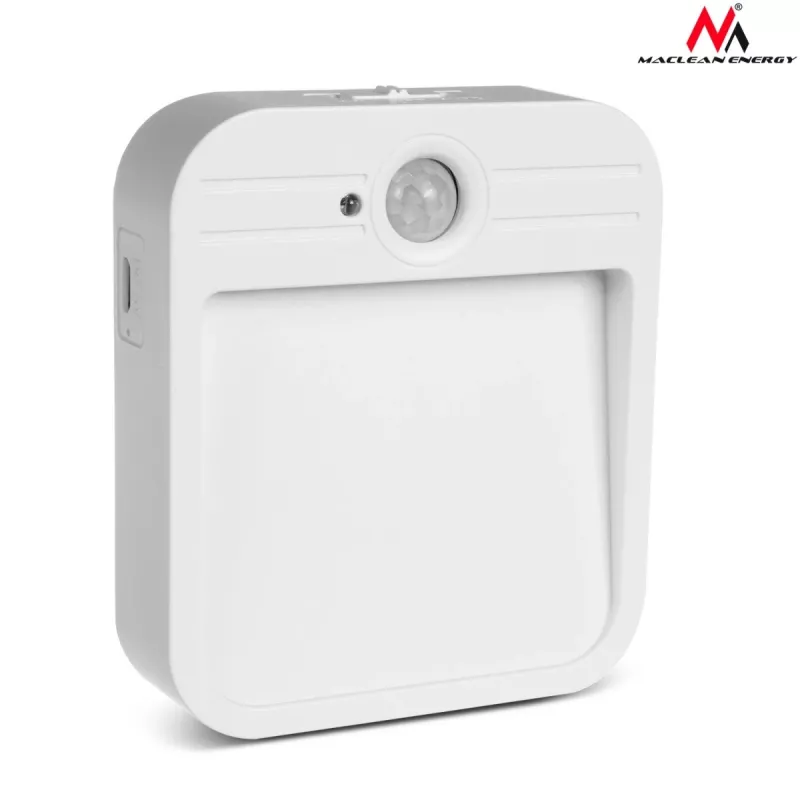

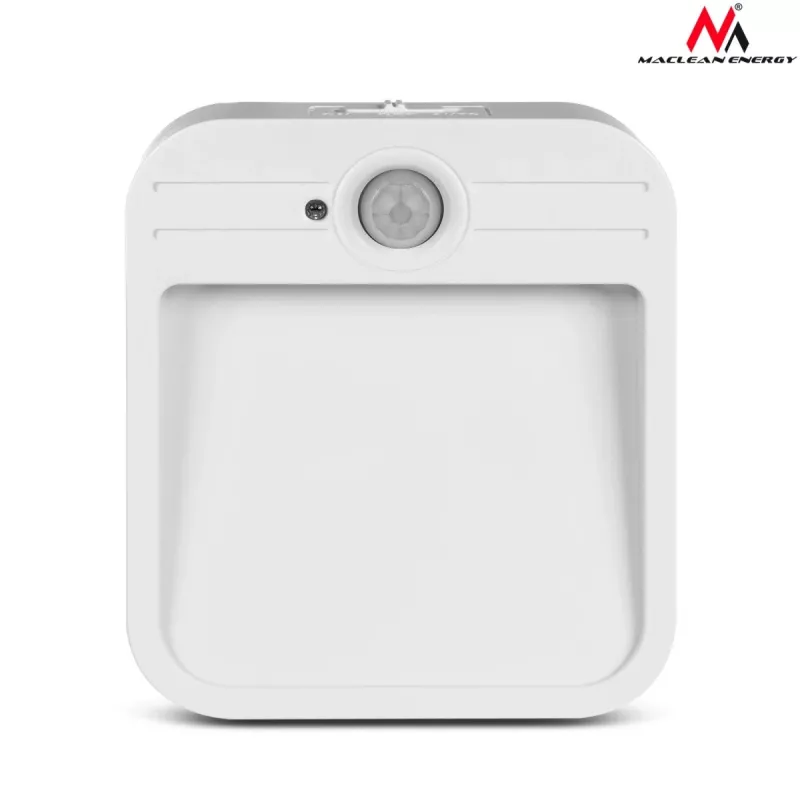

MACLEAN PIR bewegingsmelder-lamp MCE236

The MACLEAN MCE236 PIR Motion Sensor Light is a high-quality ceiling-mounted motion detector designed for automatic lighting control in indoor environments. Featuring a 360° detection angle and a maximum range of 6 meters, it ensures reliable presence detection for energy-efficient lighting management.

Advantages

This motion sensor light offers adjustable ambient light threshold (3-2000 LUX) and time delay (10s to 7min), allowing customization to suit various applications. With low power consumption (0.45W active, 0.1W standby) and easy installation at heights of 2.2-4m, it provides an economical and practical solution for automatic lighting.

Suitable for

• Corridors, stairwells, and hallways
• Bathrooms and utility rooms
• Office spaces and meeting rooms
• Warehouses and storage areas

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 360°
• Detection Distance: Max 6m (<24°C)
• Power Supply: 220-240V AC, 50/60Hz
• Rated Load (Incandescent): 1200W
• Rated Load (LED/Fluorescent): 300W
• Ambient Light Setting: <3-2000 LUX (Adjustable)
• Time Delay Setting: Min 10s ± 3s, Max 7min ± 2min (Adjustable)
• Installation Height: 2.2-4m
• Detection Motion Speed: 0.6-1.5m/s
• IP Rating: IP20
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH
• Power Consumption (Work): 0.45W
• Power Consumption (Static): 0.1W
• Material: ABS Plastic
• Mounting Type: Ceiling Mount

Recommendations

For optimal performance, install the sensor at the recommended height and avoid placing it near heat sources or air conditioning vents. Adjust the LUX and time delay settings according to the ambient light and desired duration.
