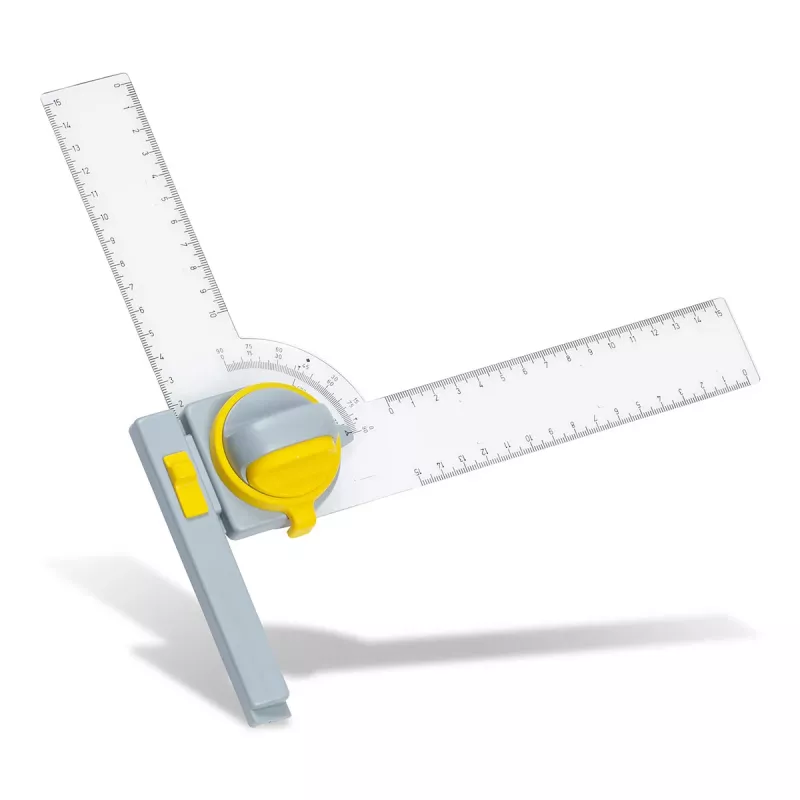

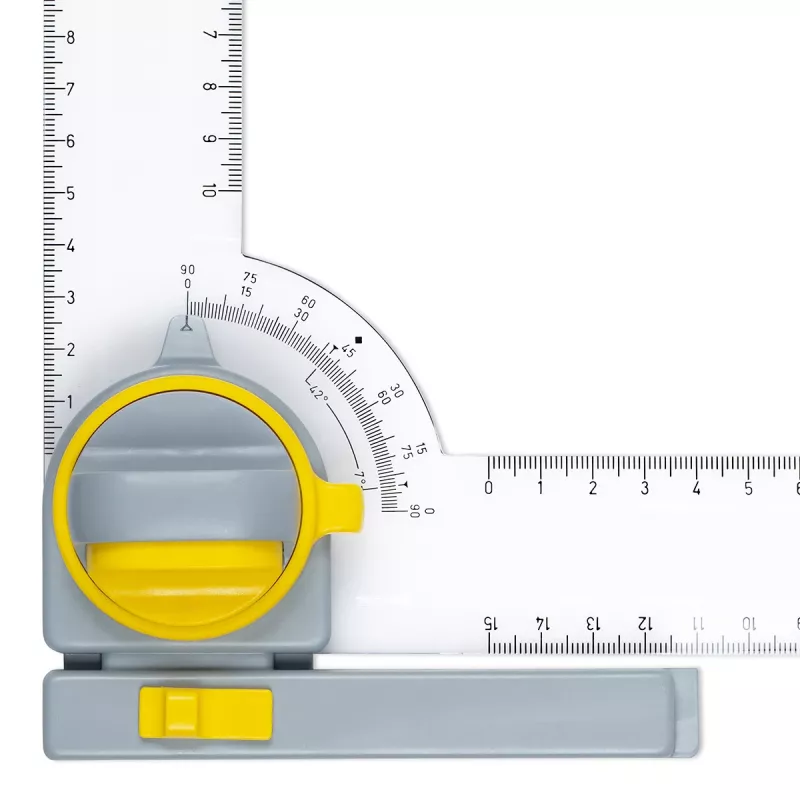

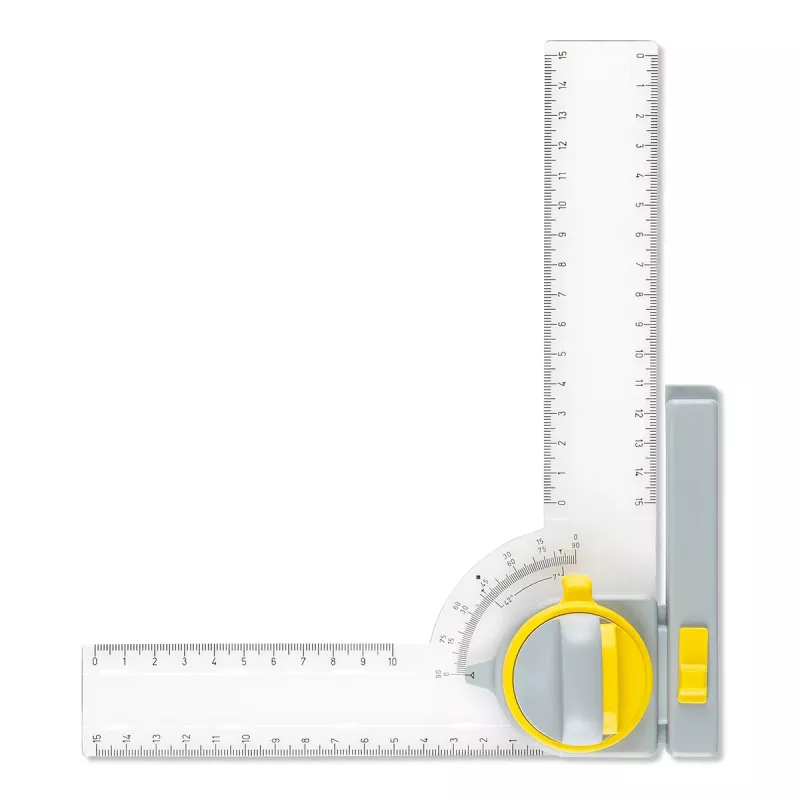

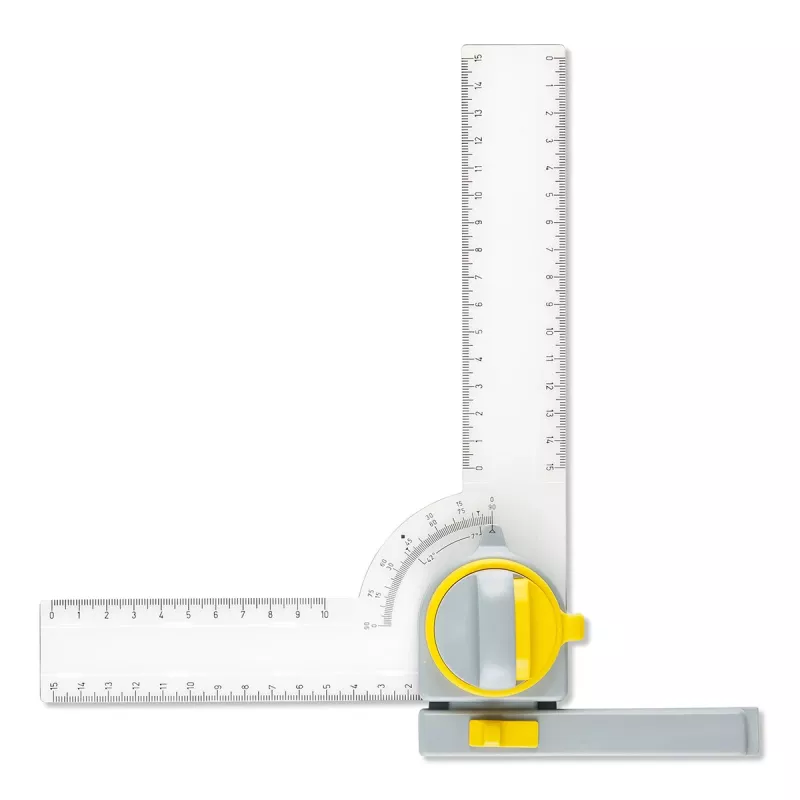

ARISTO AR7094 Rapid tekenkop

The ARISTO AR7094 Rapid Drawing Head is a high-precision drafting tool designed for professional technical and architectural drawing. Featuring a one-hand push-button mechanism, it allows for quick and accurate angle adjustments with automatic 15° indexing and continuous fine adjustment via a locking screw. The transparent plastic construction provides durability and clear visibility of the underlying drawing. Compatible with ARISTO drawing boards equipped with a guide rail, this drawing head ensures smooth gliding and precise line work.

Advantages

Experience effortless and accurate angle setting with the Stop-and-Go mechanism, which enables free movement or locking at any position. The integrated protractor scale (0-90-0 degrees) and cm scale facilitate precise measurements. Ergonomic design reduces hand fatigue during extended use, making it ideal for daily drafting tasks.

Suitable for

• Technical drawing and engineering design
• Architectural drafting and planning
• Educational environments for drafting instruction
• Professional studios requiring high precision

Key specifications

• Product Type: Drawing Head / Drafting Head
• Mechanism: Rapid Drawing Head with one-hand push-button
• Angle Adjustment: Continuous with automatic 15° indexing
• Fine Adjustment: Yes, with locking screw
• Protractor Scale: 0-90-0 degrees
• Material: High-quality transparent plastic
• Color: Transparent
• Integrated Scales: cm scale
• Special Feature: Stop-and-Go mechanism
• Compatibility: ARISTO drawing boards with guide rail (e.g., ARISTO-BOARD, ARISTO-STUDIO)
• Mounting: Glides smoothly on guide rail
• Application: Technical, architectural, engineering drawing

Recommendations

For optimal performance, use the ARISTO AR7094 with compatible ARISTO drawing boards. Ensure the guide rail is clean and properly aligned for smooth operation. This drawing head is a reliable choice for professionals seeking accuracy and efficiency in their drafting work.
